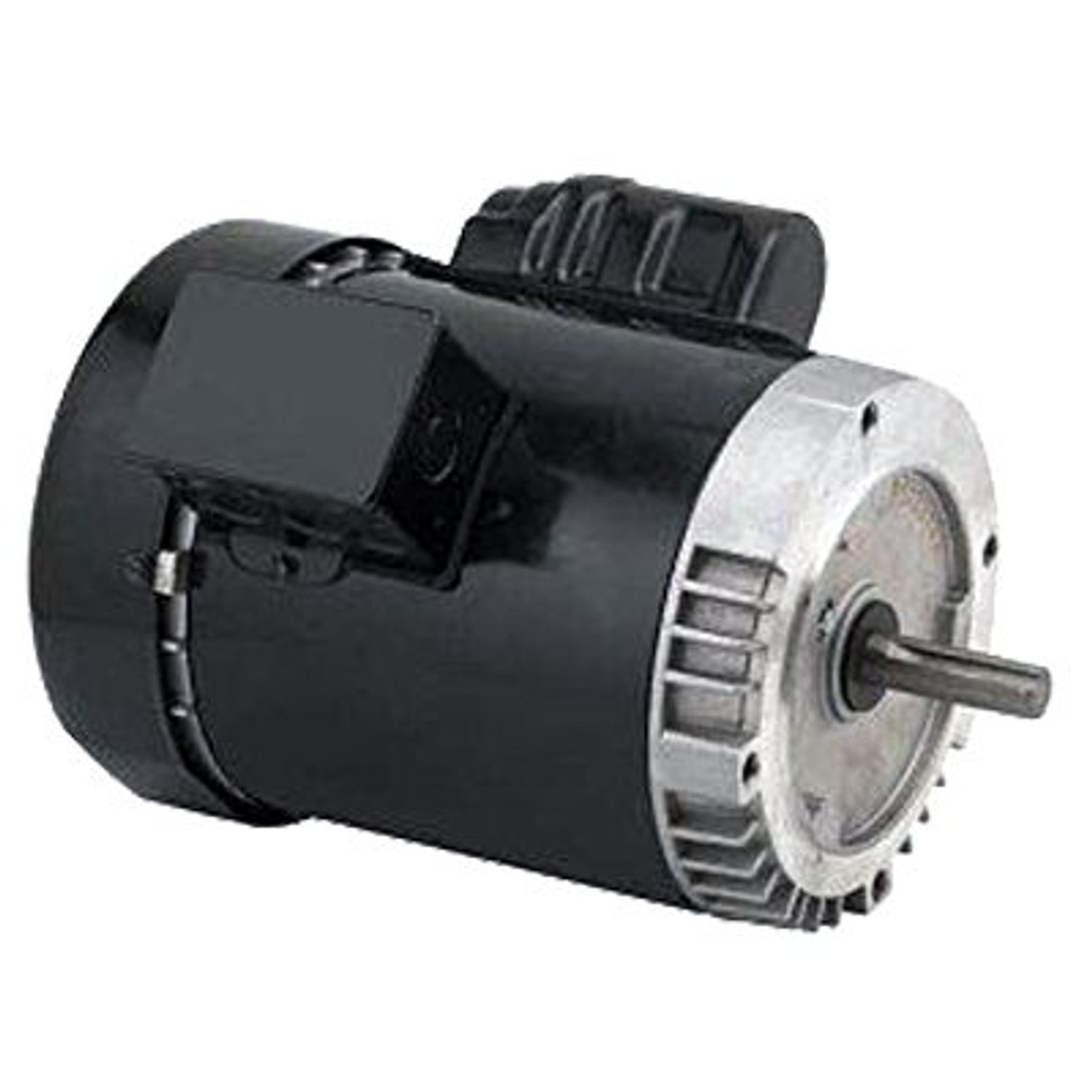

T12C2JCR Special Application single Phase TEFC C-Face 1/2 HP

Product Description

T12C2JCR Special Application single Phase TEFC C-Face 1/2 HP

APPLICATIONS:
For use on chiller, condensate, and other HVAC duty pumps, booster and irrigation pumps, dishwasher and part washer pumps, watering and de-watering pumps, and other commercial duty pumping applications.

FEATURES:
-Double Sealed Ball Bearings
-Class B Insulation, Continuous Duty, 40*C Ambient
-Shaft Threads for 56J Mount: 7/16-20 UNC-2A, No Base
-50/60 Hz Motors have 1.0 S.F. on 50Hz
-F1 Assembly
-Reversible Rotation
-Capacitor Start, Induction Run

SPECS:
HP - 1/2
RPM - 1800
VOLTAGE - 115/208-230
FRAME - 56C
S.F. - 1.15
C DIMENSION - 11
MAX AMPS - 9.0/4.3-4.5

NOTES: Non-Protected
