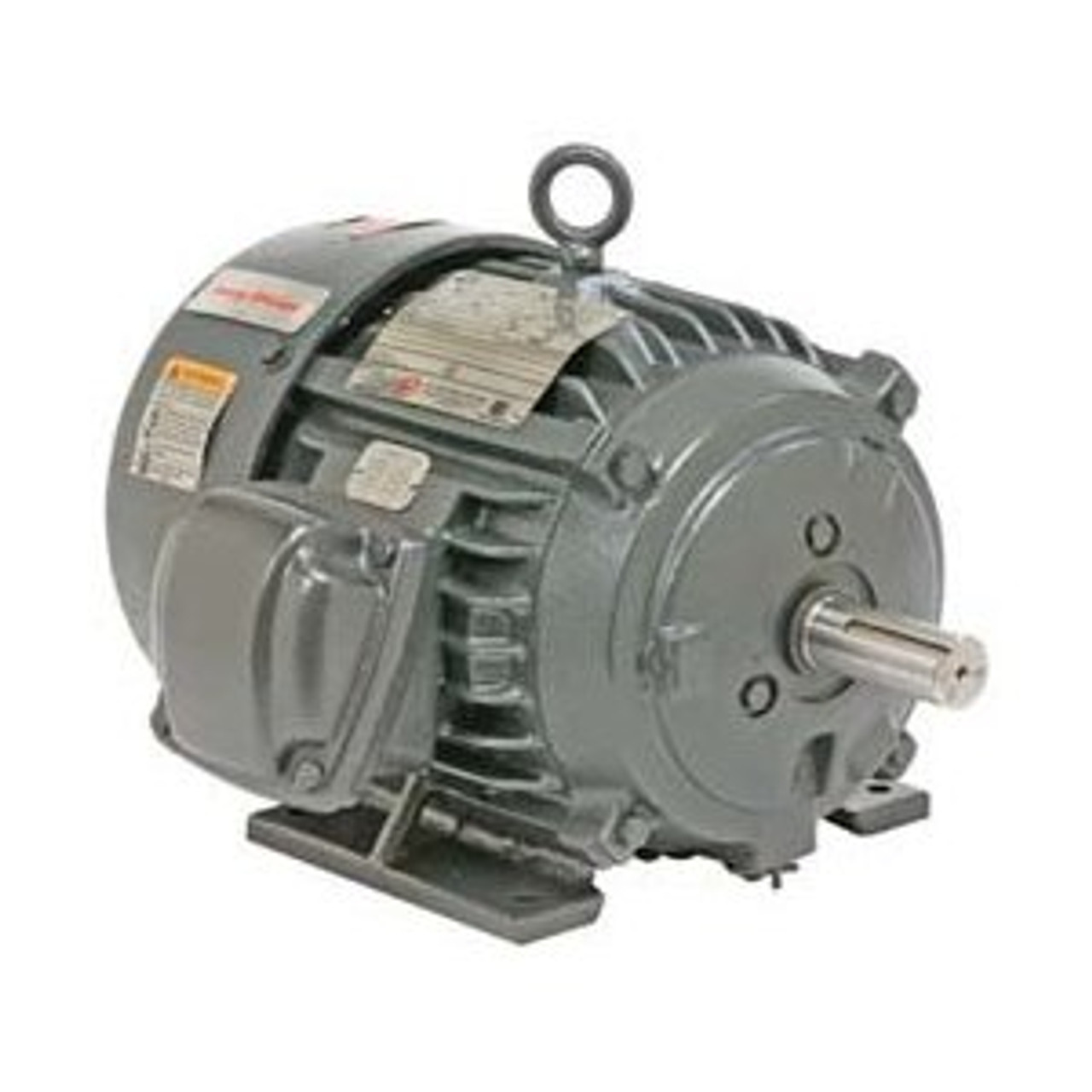

X10P1B 3 Ph TEFC Hazardous Location 1E3 Dual Label - 10 HP

Product Description

X10P1B 3 Ph TEFC Hazardous Location 1E3 Dual Label - 10 HP

General Purpose Three Phase, Totally Enclosed Fan Cooled, Div. 1 Hazardous Location, NEMA Premium Efficient - IE3 Dual Label
Applications:
For pumps, fans, compressors, conveyors, and tools located in hazardous locations as defined by Class and Group

Features:
- UL Listed & CSA Certified
- Cast Iron Inner Bearing Caps 180 frame and larger
- 40 Degrees Celsius Ambient, NEMA Design B Performance
- Regreasable 180 frame and up
- Lifting Provisions
- Conversion Kits: Cast Iron Fan Kit available
- Sealed or shielded bearings

HP - 10
RPM - 3600
Voltage - 230/460
Frame - 215T
Class I Group - D
Class II Group - FG
Temp Code - T3B
SF - 1.00
C Dimension - 18.7 In.
Full Load Eff - 90.2
Full Load Amps - 23.6/11.8
Automatic Reset Thermal Overload Protector
Non - NEMA Rating
