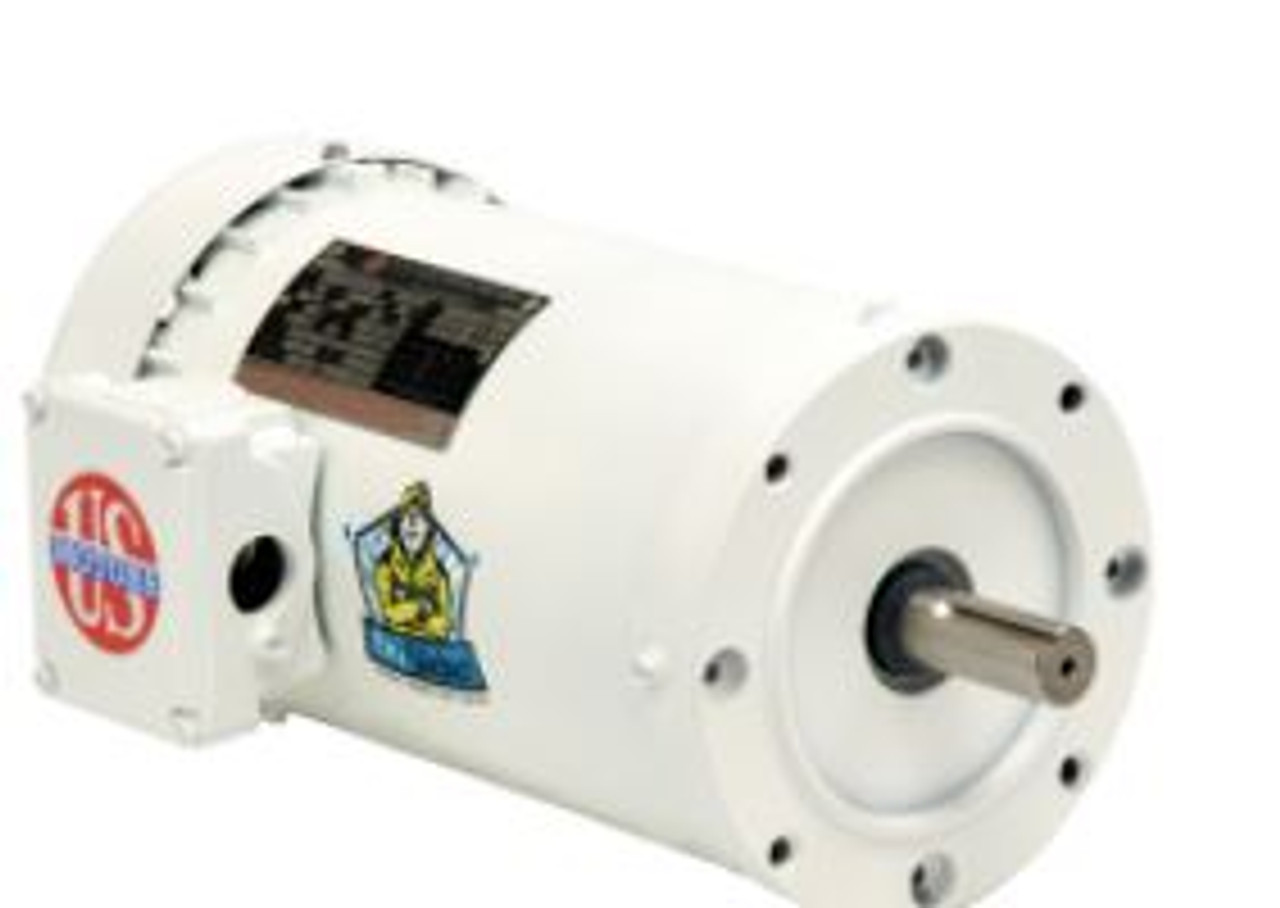

WD32P2A14 Painted Washdown 3 Phase, Totally Enclosed 1-1/2 HP

Product Description

APPLICATIONS:
Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.

FEATURES:
-Footed
-BISSC Certified, Smooth Design For Easy Cleaning
-USDA Approved Non-Toxic White Epoxy Paint
-Moisture Resistant Gasketed Conduit Box With NPT Lead Holes
-V-Ring Rotating Shaft Seals
-Full 50 & 60 Hertz Operating Data On Nameplate (180-210 Frame)
-40*C Ambient, NEMA Design B Performance On 60 Hz. Sine Wave Power
-Double Contact Sealed Ball Bearings
-Internal Corrosion Protection On Rotor, Stator, Winding & Frame
-Double Dip & Bake On Winding
-303 Stainless Steel Shaft, F1 Assembly Position
-Stainless Steel Nameplate
-Totally Enclosed Fan Cooled Except Where Noted
-Multiple Stainless Steel T-Type Drains (56 & 140 Frames)
-Removable Drain Plugs (180 & 210 Frames)

SPECS:
HP - 1-1/2
RPM - 1725
VOLTAGE - 208-230/460
FRAME - 145T
SF - 1
C DIM - 14.8
FULL LOAD EFF - 86.5
FULL LOAD AMPS - 4.4/2.2

Cross reference: wd32p2a14
