UN7T3BC TENV Vector Duty C-Face, 2000:1 Constant Torque 7-1/2HP

Product Description

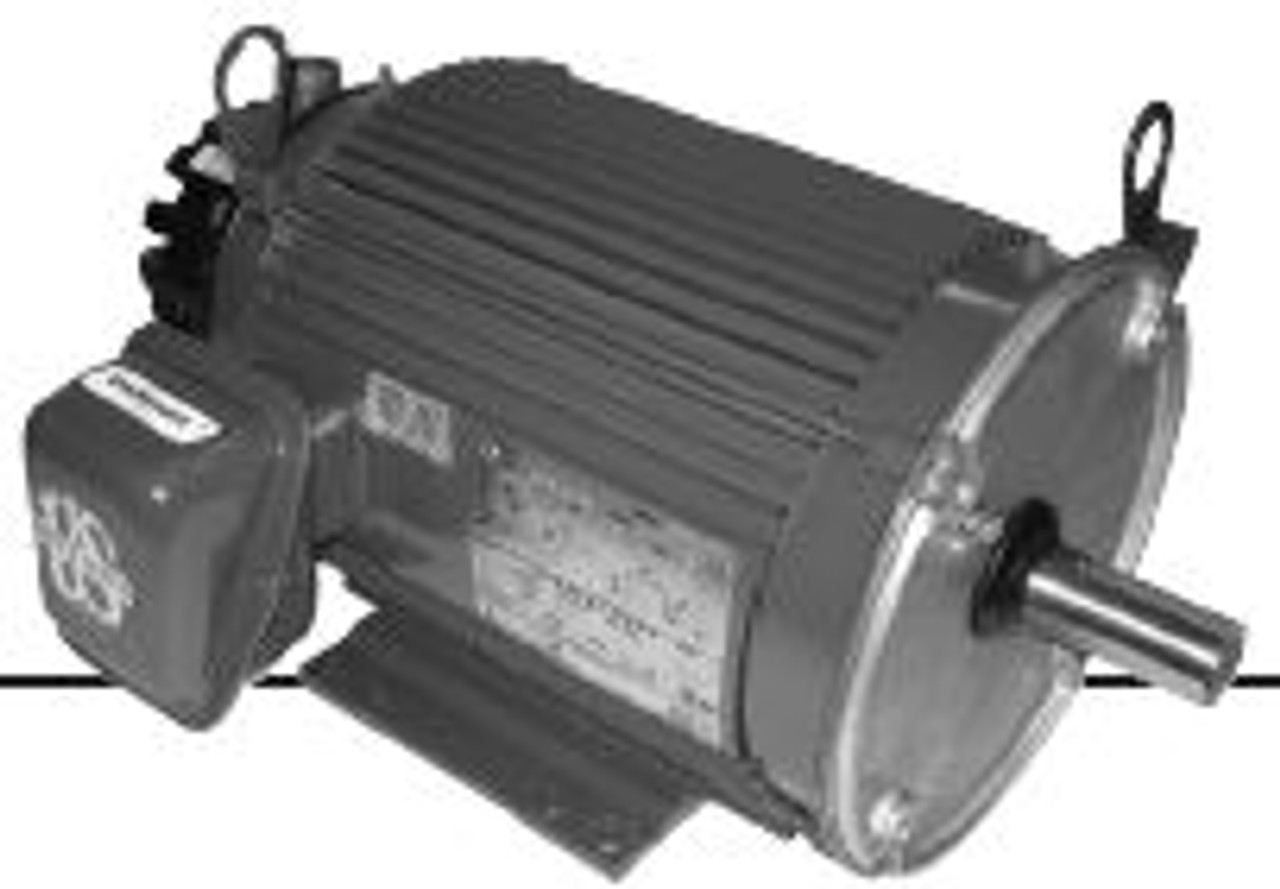

UN7T3BC TENV Vector Duty C-Face, 2000:1 Constant Torque 7-1/2 HP
ACCU-Torq Totally Enclosed, Non-Ventilated Vector Duty, C-Face, 2000:1 Constant Torque

Applications:
For use with inverters and in vector drive applications. Particularly suited for applications up to a 2000:1 constant torque speed range. Typical applications: machine tools, material handling, packaging machines, test equipment, and other industrial machinery.

Features:
- Constant Torque Operation from Zero to Base Speed Vector Drives
- Constant HP Operation to Twice Base Speed
- Continuous Duty at 40 Degrees Celsius Ambient
- Optimized for Operation with IGBT and Intelligent Power Module Drives
- Class F Insulation
- Normally Closed Thermostats Standard
- Shaft Grounding Ring Option on all ratings
- F-1 Standard Field Convertible to F-2 for 180 frame and above
- Removable Base 190 Frame and Above
- Steel 56-140 Frame; Aluminum 180 Frame and Above
- D-Flange Convertible Kit available
- 3 Year Warranty


HP - 7-1/2
Base RPM - 1200
Max RPM - 2400
Voltage - 230/460
Frame - 254TC
C Dimension - 23.1 In
Full Load Amps - 19.8/9.9
Rated Torque lb - in. - 398.4
Inertia lb.-in.-sec - 1.194


Due to the weight of this item, shipping cost is for estimation only. Please call for an accurate shipping quote.

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
