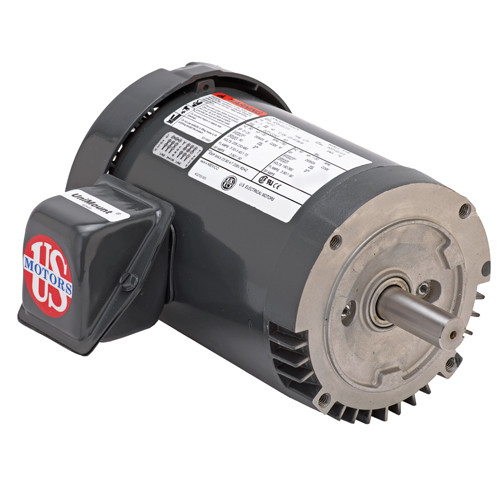

U32P2DCR US Motors General Purpose Motor 1.5 HP 1755 RPM 145TC Frame

Product Description

US Motors U32P2DCR General Purpose Motor

Applications:  For use on chiller, condensate, and other HVAC duty pumps, booster and irrigation pumps, dishwasher and part washer pumps, watering and de-watering pumps, and other commercial duty pumping applications.

• 1.5 HP
• 1755 RPM
• 145TC FRAME
• 3 PHASE
• 208-230/460 VOLT
• 5.4-5/2.4 AMP
• 1.15 S.F.
• SINGLE SPEED
• TEFC
• REVERSIBLE
• FOOTLESS
• C-FACE
• .875" X 2.13" KEYED SHAFT

• 13.13" C-DIMENSION

Cross References:  145TTFR5332 C221A C221B MC221 CF103
