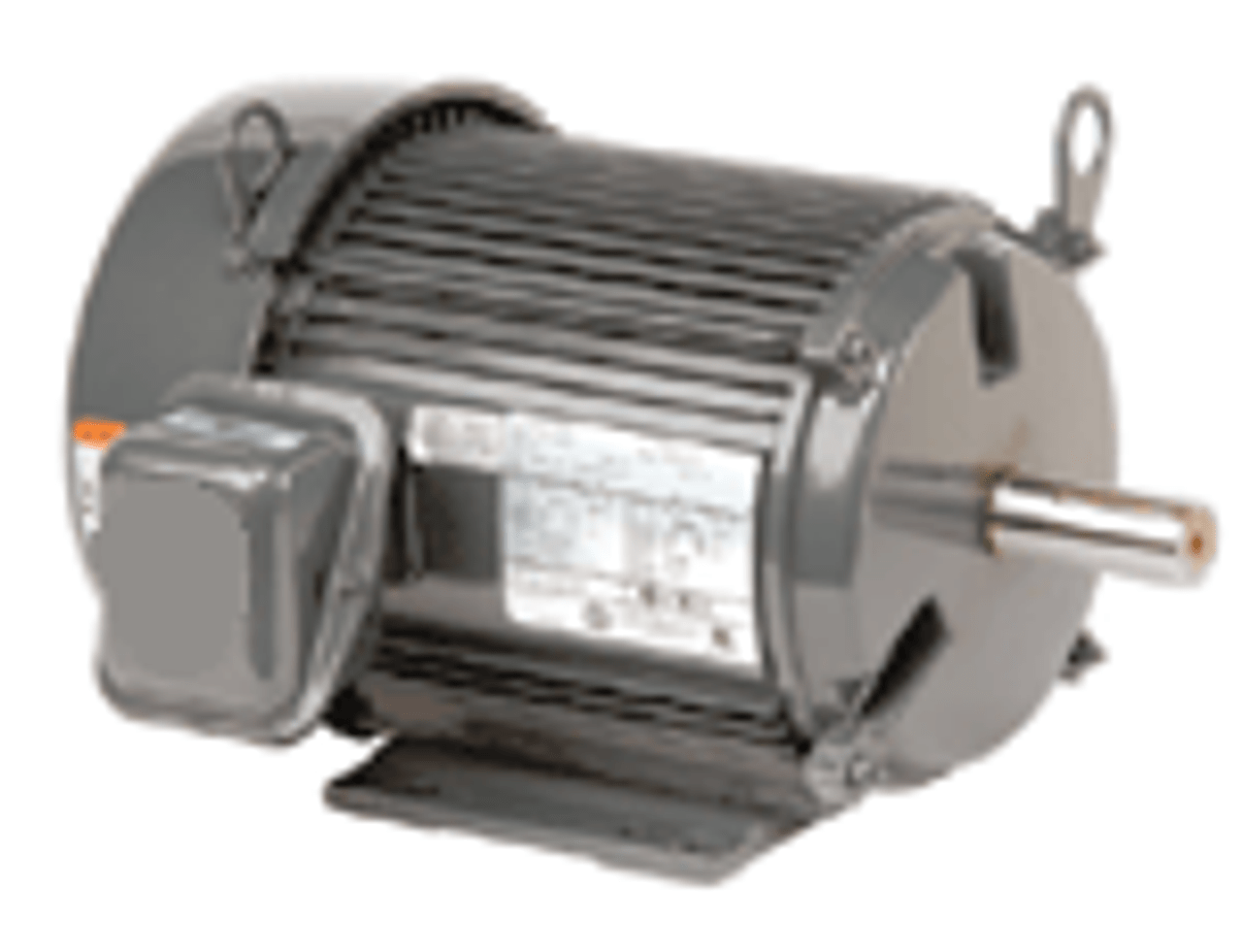

U2V2BC 3PH TEFC Unimount, Inverter Duty 2 HP

Product Description

U2V2BC 3PH TEFC Unimount, Inverter Duty 2 HP

Applications
For pumps, fans, blowers or other inverter powered applications.

Features:
-Inverter Grade Insulation System (Meets NEMA MG-1 Part 31)
-Class F Thermostats (One Per Phase)
-Extruded Aluminum Frame (140: Rolled Steel)
-Aluminum End Shields With Steel Bearing Inserts
-40*C Ambient NEMA Design B Performance on 60 Hertz Sine Wave Power
-56/140 Frame Shielded Bearings, Double Shielded Bearings
-Double Dip & Bake With Extra Bracing
-Premium Efficient Design, Special Balance, F! Assembly Position
-Class F Insulation, 1.15 S.F. On Sine Wave / 1.0 S.F. On PWM Constant HP to 90 Hz


5:1 (12-60 Hz) Speed Range Constant Torque

HP - 2
RPM - 1800 (3600)
VOLTAGE - 230/460
FRAME - 145TC
"C" DIM. (Inches) - 13.1
FULL LOAD EFF. - 85.5
FULL LOAD AMPS - 5.5/2.8
