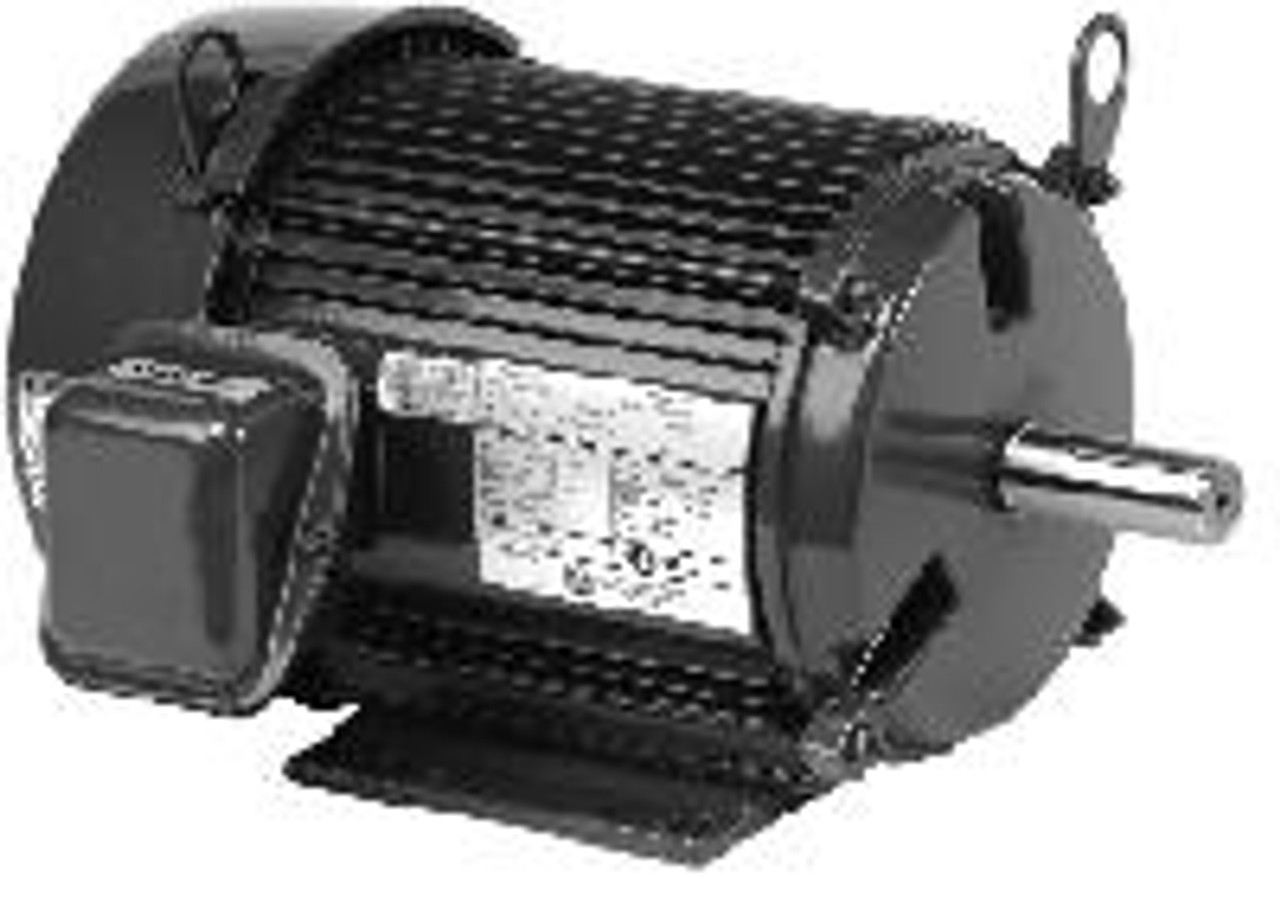

U20P2G General Purpose 3 Phase TEFC 1E3 Unimount 20 HP

Product Description

U20P2G General Purpose 3 Phase TEFC 1E3 Unimount 20 HP

Applications:
For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

Features:
-Class F Insulation, Class B Rise at Full Load on 60 Hz Sine Wave Power
-Rolled Steel Frame
-Aluminum End Shields with Steel Bearing Inserts
-Over sized Diagonally Split Conduit Box
-40 Degrees Celsius Ambient, NEMA Design B Performance
-Conversion Kits: C & D Flanges, Drip Covers

HP - 20
RPM 1800
Voltage - 575
Frame - 256T
"C" Dim - 25.6 Inches
Full Load Eff. - 93.0
Full Load Amps - 19
Service Factor 1.25

Cross Reference: U20P2D
Please note: Due to the weight of this item, shipping cost is for estimating purposes only. To get an accurate shipping cost, you must call for a quote.

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
