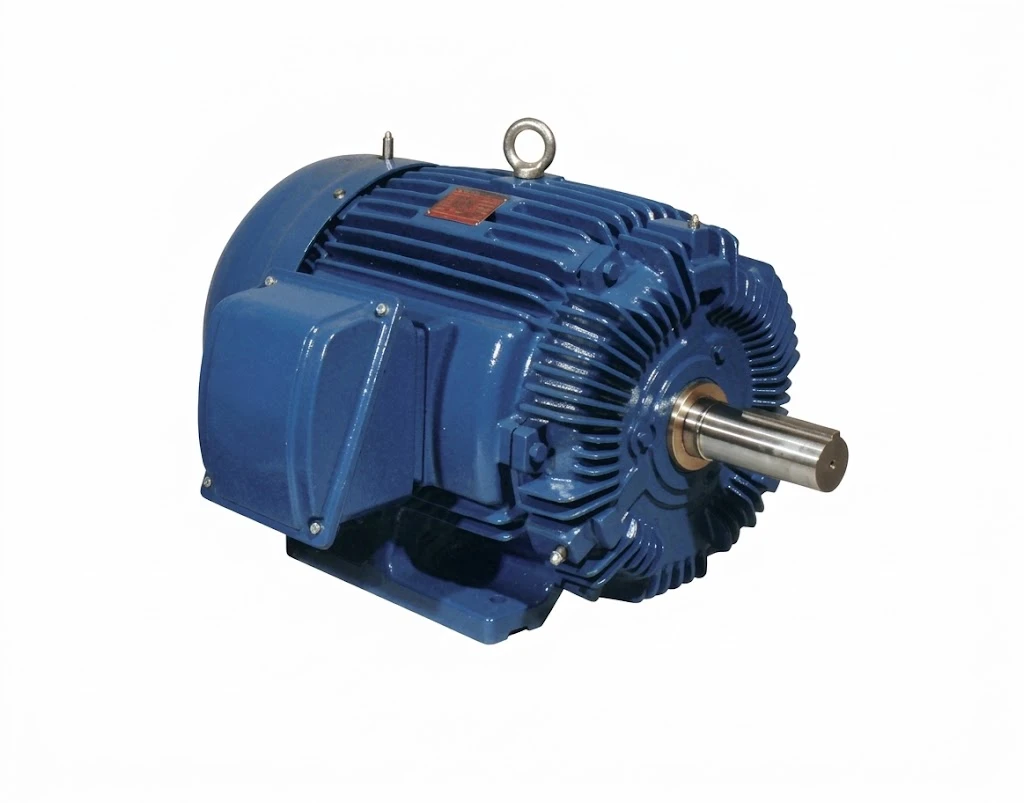

TECO HB2008 200 HP 900 RPM 449T 460V 3PH TEFC IEEE 841 Motor

Product Description

TECO-Westinghouse HB2008 IEEE 841 Severe Duty Motor, 200 HP, 900 RPM, 460V, 3-Phase, 449T Frame, TEFC

The TECO HB2008 is a heavy-duty IEEE 841 severe duty industrial motor designed for continuous operation in demanding processing environments. Powered by a 200 HP, 460V three-phase motor operating at 900 RPM, this unit features a rugged cast iron construction, a Totally Enclosed Fan Cooled (TEFC) enclosure, and a rigid base mount. Drawing 242 Amps, it is built to satisfy strict IEEE 841 standards for maximum reliability, durability, and performance in harsh industrial settings.

Key Specifications

• Brand / Series: TECO-Westinghouse / IEEE 841 Severe Duty
• Model / Part Number: HB2008
• Horsepower: 200 HP
• RPM: 900 RPM
• Voltage: 460V
• Phase: Three Phase
• Amperage: 242 Amps
• Frame Size: 449T
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Material: Cast Iron
• Mounting: Rigid Base
• Rotation: REV (Reversible)
• Overload Protection: None

Product Features & Fitment

Constructed with high-strength cast iron, the TECO HB2008 provides exceptional structural integrity and vibration damping under heavy loads. Operating on 460V three-phase power at 900 RPM, its 449T frame with rigid base mounting ensures secure, stable positioning. The TEFC enclosure shields internal components against moisture, dust, and abrasive contaminants, making this 200 HP motor an optimal choice for driving industrial pumps, fans, blowers, and heavy processing machinery in chemical, oil & gas, and manufacturing facilities.
