SGR-3.375-UKIT, AEGIS Bearing Protection Ring 3-3/8" (444T, 445T, 447T, 449T Frame) Shaft Diameter

Product Description

• SGR-3.375-UKIT, AEGIS Bearing Protection Ring 3-3/8" Diameter

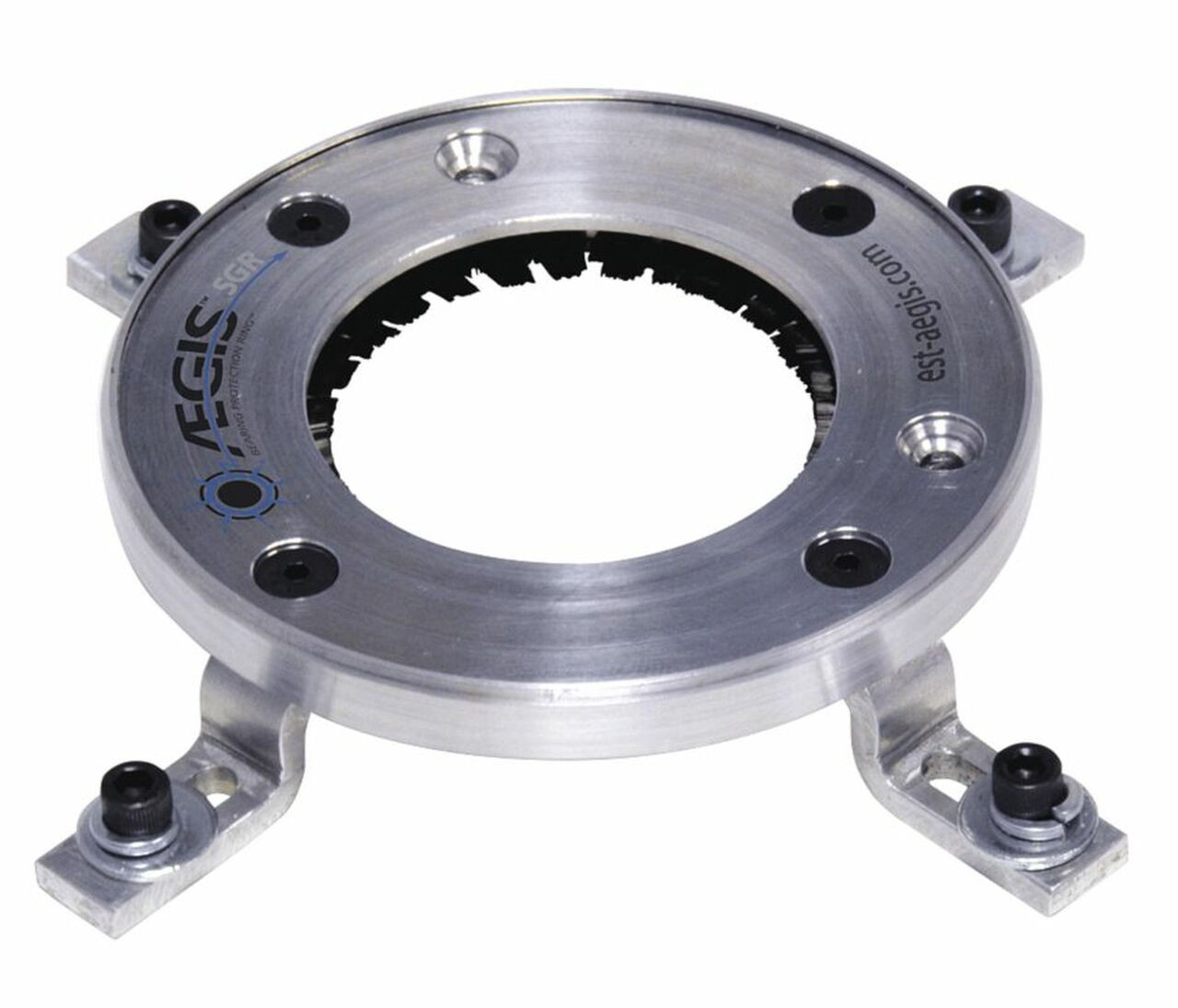

• AEGIS Bearing Protection Ring
• For 3-3/8" Diameter shaft (3.375")
• NEMA 444T, 445T, 447T, 449T  Frame
• Aluminum construction
• Includes mounting brackets
• Bolt on mount or Epoxy.

For easy AEGIS® Conductive Epoxy mounting:
EP2400 AEGIS® Conductive Epoxy (sold separately)

AEGIS Includes
(1) AEGIS SGR Bearing Protection Ring

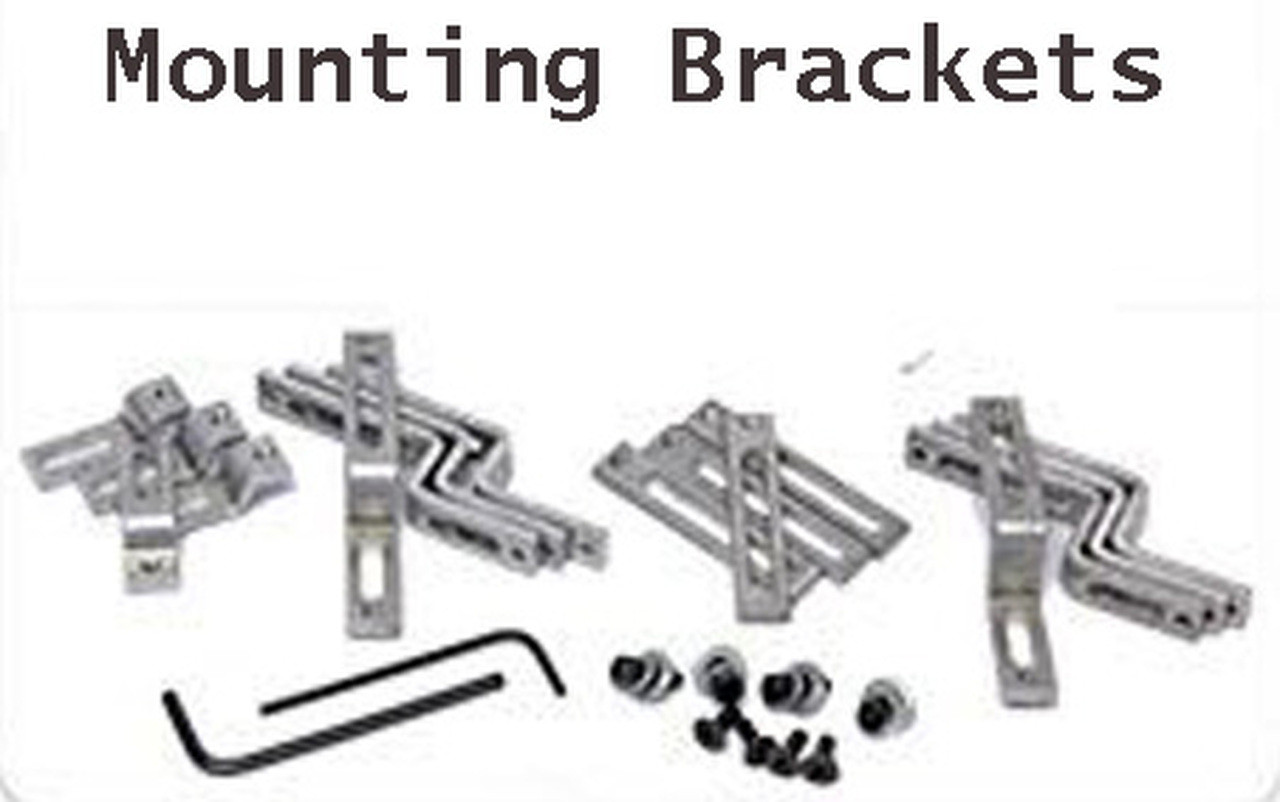

(4) Universal brackets Of Each size (16 total)
(4) 5-40 x 3/8 Flat Head Cap Screws
(4) 6-32 x 3/8 Socket Head Cap Screws
(4) #6 Flat Washers
(4) #6 Split Lock Washers
5/64" Allen Wrench
7/64" Allen Wrench.

Help extend motor life by safely diverting harmful VFD-induced shaft voltages away from motor’s bearings to ground. Protect both motor bearings and the bearings in attached equipment.

Cross ref number:
