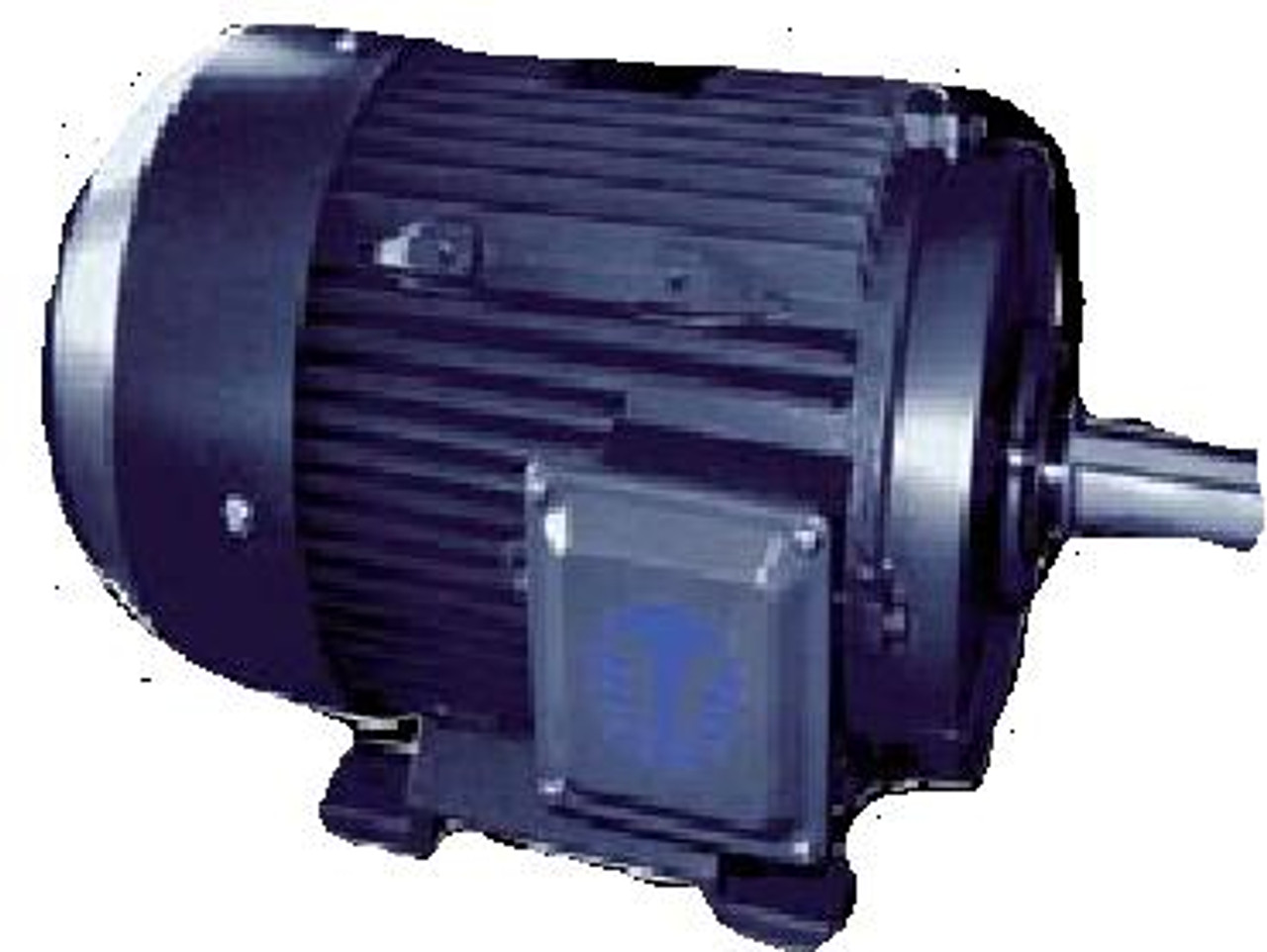

P32T182T TEFC Cast Iron Motor 3 HP 3600 RPM

Product Description

P32T182T TEFC Cast Iron Motor 3 HP 3600 RPM

Premium Efficiency, Inverter Rated, 4:1 Constant, Design B, UL 1004 approved, 1.15 Service Factor, 40 degree Ambient Rating, Lithium No.3 Grease, 12 Lead Dual Voltage, Wye - Delta Start wound, 1045 Carbon steel shafts, Class F insulation system, Class H impregnation resin, Double lip seals on both ends, Split conduit box is 90 degree rotatable, F1 to F2 convertible (Shipped F1)

3 HP
3 Phase
3600 RPM
86.5 Eff%
0.91 Power Factor
3.7 Amps @ 460V
7.4 Amps @ 208-230V
Ball Bearing
182 T Frame
24 Month Warranty

May require additional 24-48 hours to ship. Please call for availability

Please note due to the weight of this item. Shipping cost is for estimating purposes only. To get an accurate shipping cost you must call for a quote.

Cross Reference:CITF182T2BD3

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
