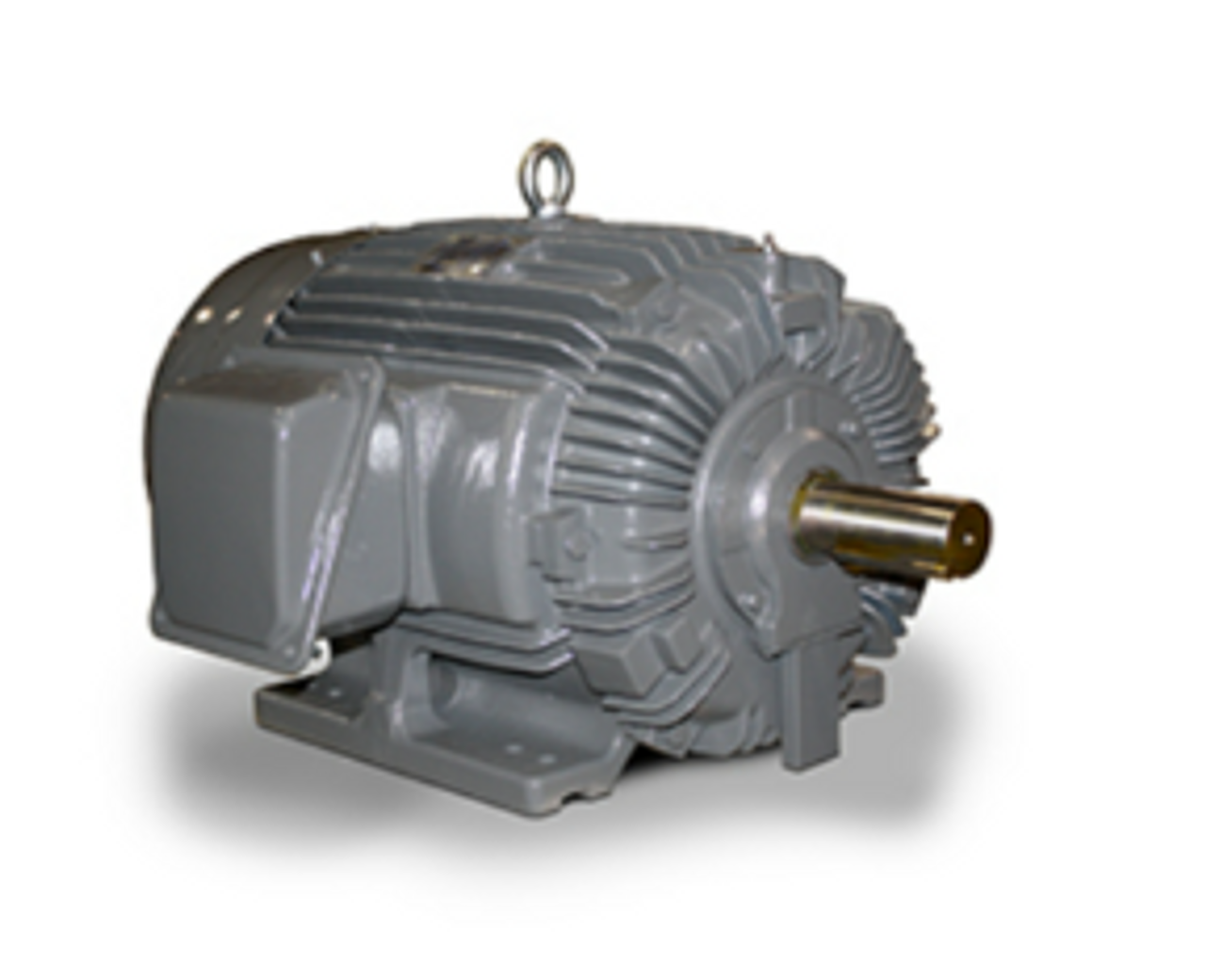

NP7/52C TECO Westinghouse 7 1/2 hp 3600 RPM 213TC Frame 230/460V MAX-PEâ„¢

Product Description

TECO WESTINGHOUSE MAX-PE, NEMA PREMIUM ELECTRIC MOTOR
SEVERE DUTY RATED

• 7 1/2 hp
• 3600 RPM,
• 17.3/8.67 amps
• 230/460 Volts
• 60hz.
• Three Phase
• NEMA 213TC Frame,
• Keyed Shaft 1 3/8" Diameter x 3 3/8"
• Cast Iron Construction,
• Enclosure: Totally Enclosed Fan Cooled (IP54)
• Service Factor: 1.15,
• Thermal Overload Protection: None
• Rigid Base,
• Reversible,
• Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
