Product Description

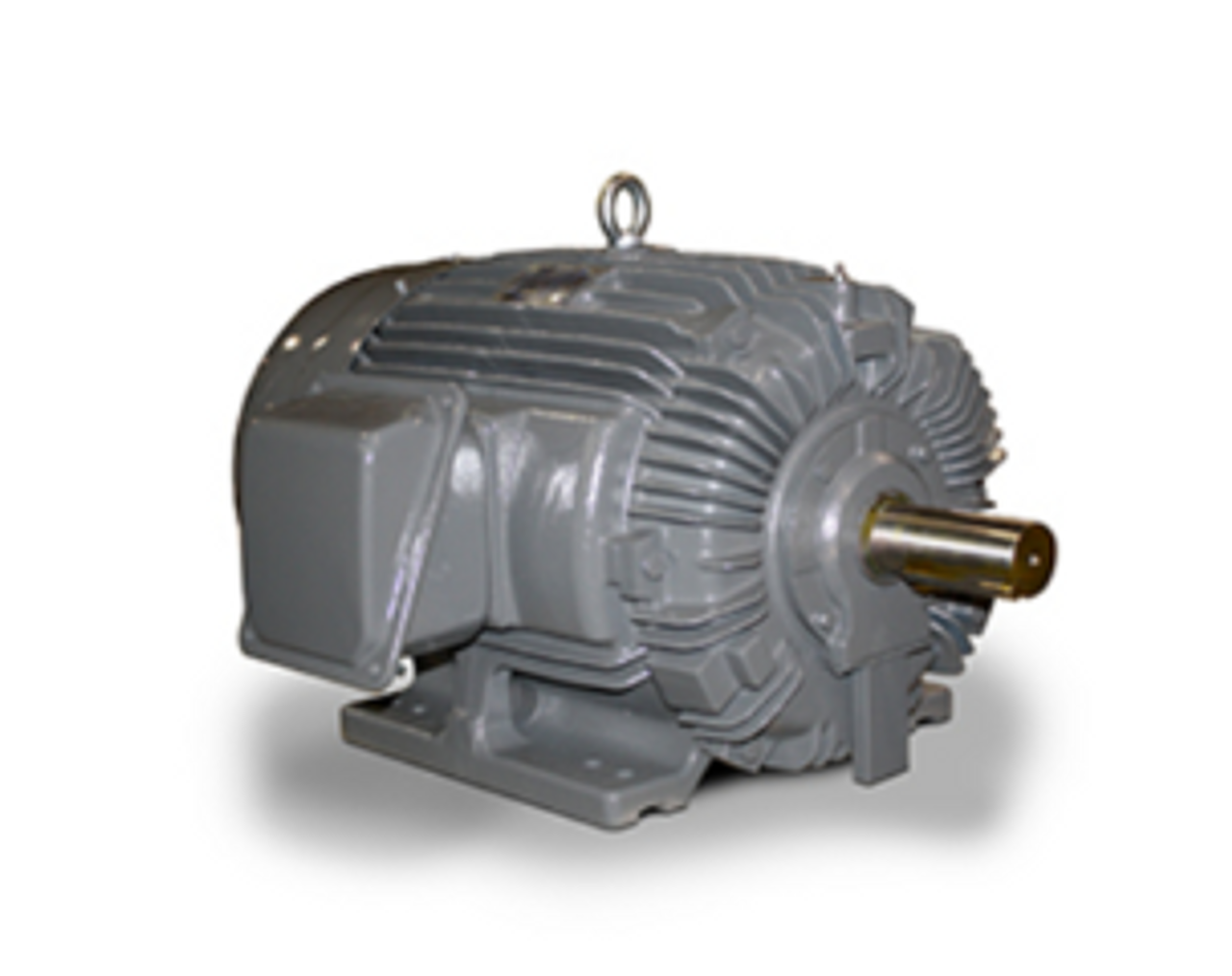

TECO NP0014 General Purpose Motor

TECO WESTINGHOUSE MAX-PE, NEMA PREMIUM ELECTRIC MOTOR
SEVERE DUTY RATED

• 1 hp
• 1800 RPM,
• 3.0/1.5 amps
• 208-230/460 Volts
• 60hz.
• Three Phase
• NEMA 143T Frame,
• Keyed Shaft 7/8" Diameter x 2 1/4"
• Cast Iron Construction,
• Enclosure: Totally Enclosed Fan Cooled (IP54)
• Service Factor: 1.15,
• Thermal Overload Protection: None
• Rigid Base,
• Reversible,
• Ball Bearings, Class B Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
