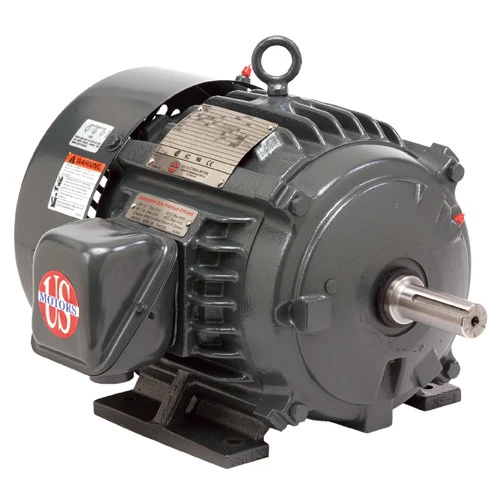

Nidec U.S. Motors HD7V2B – 7.5 HP, 1770 RPM, 230/460V, 3 Phase Motor

The Nidec U.S. Motors HD7V2B is a 7.5 HP, three-phase electric motor designed for dependable performance in commercial and industrial applications. Featuring a standard NEMA 213T frame, dual 230/460 volt operation, and a full-load speed of 1770 RPM, the HD7V2B is well suited for applications including fans, blowers, pumps, and other industrial equipment.

Motor Specifications:

• Manufacturer: Nidec / U.S. Motors
• Catalog Number: HD7V2B
• Model Number: GE57
• Horsepower: 7.5 HP
• Speed: 1770 RPM
• Voltage: 230/460V
• Phase: 3 Phase
• Frequency: 60 Hz
• Frame: 213T
• Full Load Amps: 19.1/9.6
• Service Factor: 1.15
• NEMA Design: B
• NEMA Code: H
• Nominal Efficiency: 91.7%
• Shaft Diameter: 1-3/8"
• Shaft Length: 3-3/8"

Ideal for industrial motor replacement applications where the Nidec/U.S. Motors HD7V2B or equivalent 7.5 HP, 213T-frame motor is required.

Always verify the horsepower, voltage, RPM, frame size, shaft dimensions, enclosure, and mounting configuration of your existing motor before ordering.
