Product Description

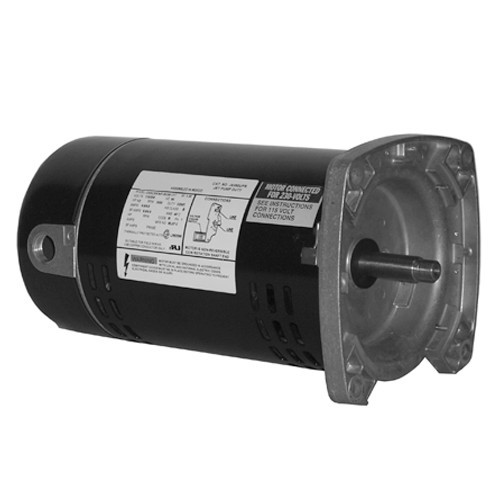

Nidec JS0332-2 Jet Pump Motor
The genuine Nidec JS0332-2 jet pump motor is engineered for dependable water system performance in residential and light commercial jet pump applications. Designed for long service life and reliable operation, this motor delivers the power and durability needed for shallow well, deep well, pressure booster, and water transfer systems.
Manufactured with a rugged rolled steel frame, premium ball bearings, and a square flange mounting design, the JS0332-2 provides smooth, dependable operation in demanding environments. Its dual-voltage capability allows for installation flexibility while the high service factor helps ensure reliable performance under varying load conditions.
Key Specifications
Brand: Nidec U.S. Motors
Model: JS0332-2
Application: Jet Pump Motor
Horsepower: 1/3 HP
Voltage: 115/230 Volts
RPM: 3450 RPM
Phase: Single Phase
Frequency: 60 Hz
Frame: 56J Square Flange
Motor Type: Capacitor Start / Capacitor Run
Enclosure: Open Drip Proof (ODP)
Bearings: Ball Bearings
Rotation: Counterclockwise (Pump End)
Service Factor: 1.95
Thermal Protection: Automatic Reset
Duty Cycle: Continuous Duty
Product Features & Applications
The Nidec JS0332-2 is designed for shallow well jet pumps, deep well jet pumps, pressure booster systems, irrigation equipment, and residential water transfer applications requiring a 1/3 HP, 3450 RPM motor. OEM-quality construction, premium ball bearings, and a square flange mounting design help provide dependable starting performance, quiet operation, and long service life.
Warranty
Manufacturer Warranty Included.
