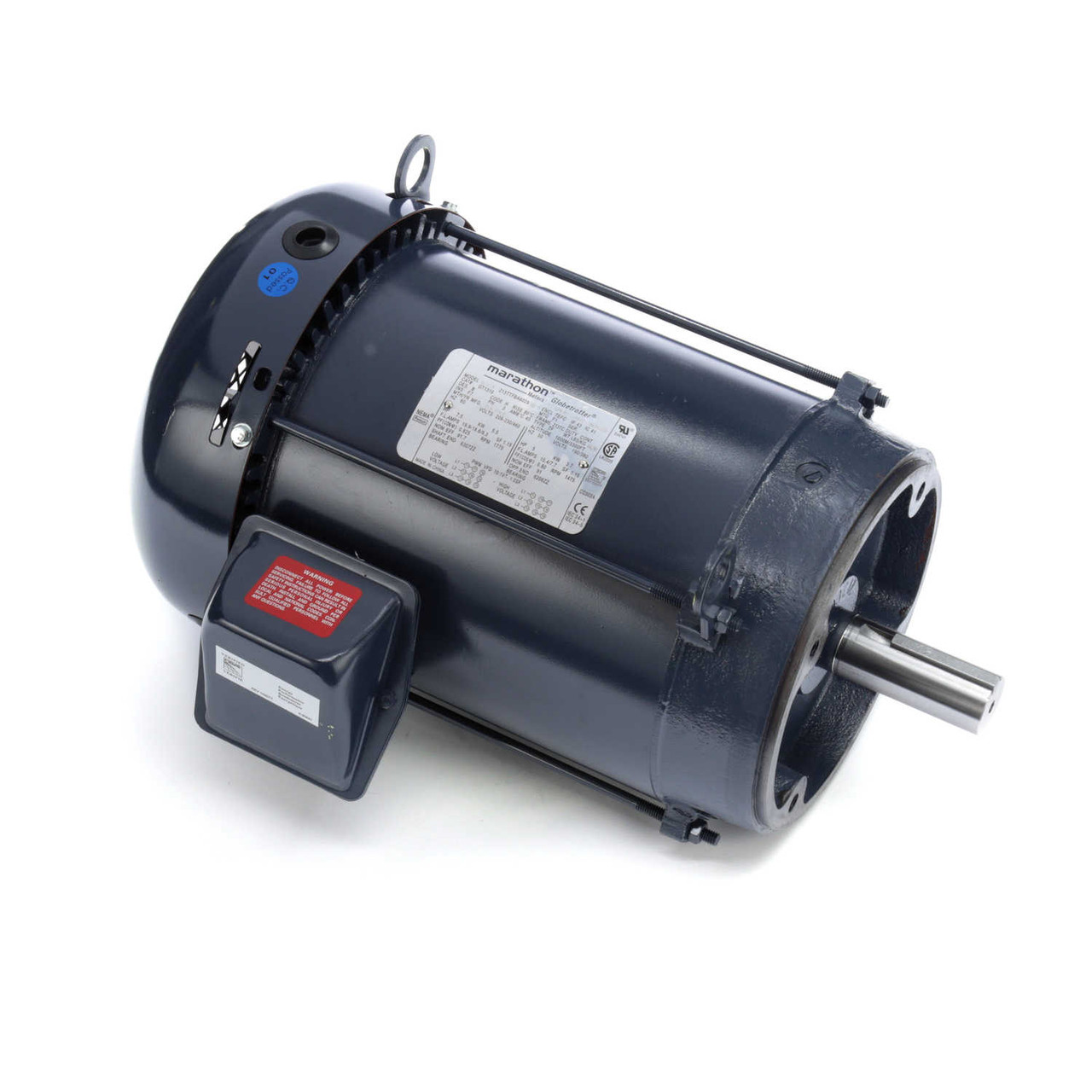

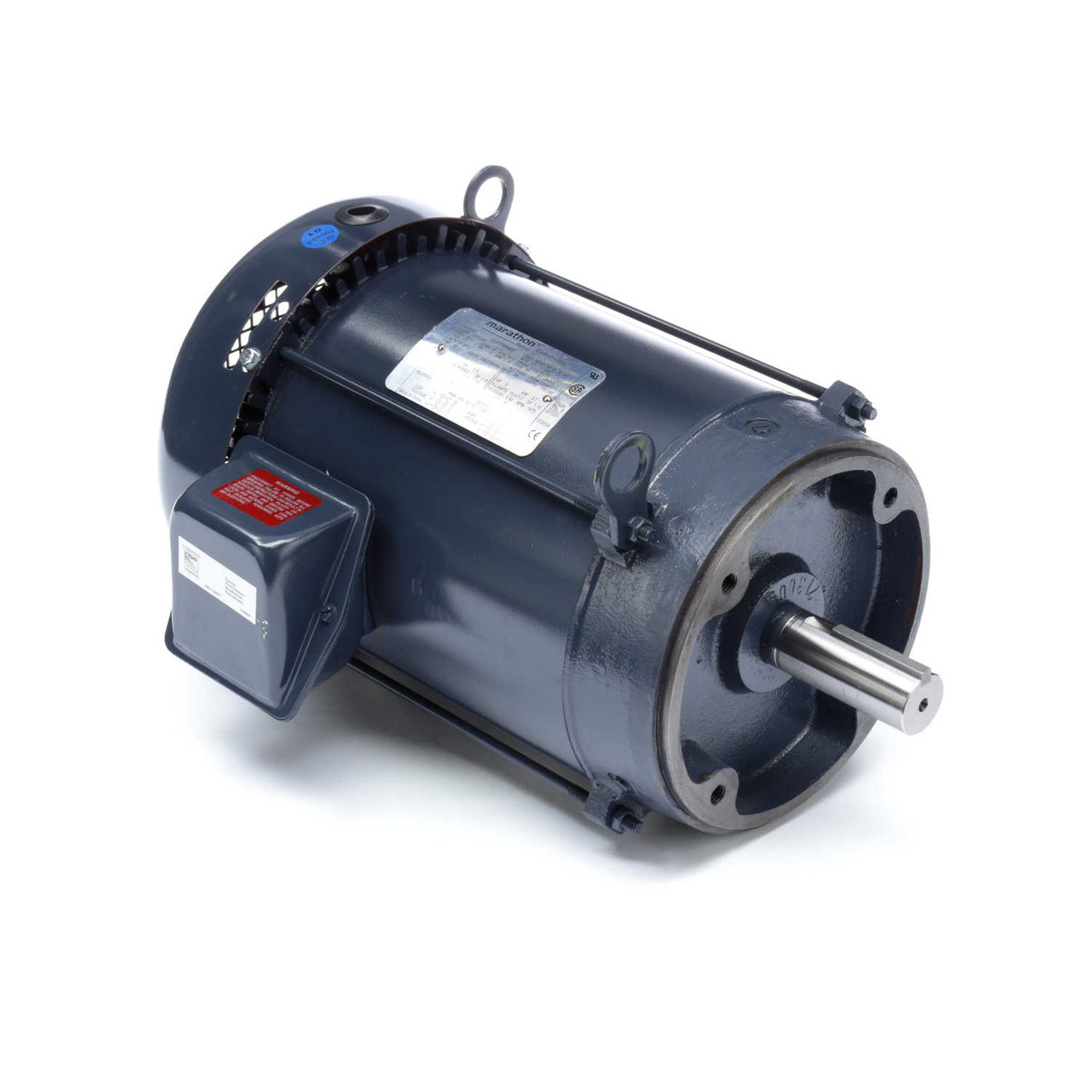

GT1316 Marathon 7 1/2 HP, 1800 RPM 230/460 Volts, 213TC Frame 3-Phase Totally Enclosed Motor

Product Description

• 7 1/2 HP, 1800 RPM
• 230/460 Volts
• 213TC Frame
• 18.6/9.3 Full Load Amps
• Totally Enclosed Fan Cooled
• Ball Bearings
• 40 °C Ambient Temperature

• Meets or exceeds NEMA Premium efficiencies
• NEMA Premium models are in compliance with EISA 2007
• Rolled Steel C-Face models are Hazardous Duty Division 2 motors
• Division 2 / Zone 2 Class 1 (gases), Groups A, B, C, D
• Inverter duty 10:1 variable torque and 10:1 constant torque, 1.0 SF
• 1.15 Service factor on sinewave, 1.0 service factor on IGBT power
• Meets temperature code T2B
• Class F Insulation
• Standard assembly F1, reversible to F2 assembly
• UL recognized, CSA certified, CE mark
• Three Year Warranty


Cross Reference: 213TTFBA6029 GT1316A 213TTFBD6029 TCF82031E PL1AA44A01C CF115

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
