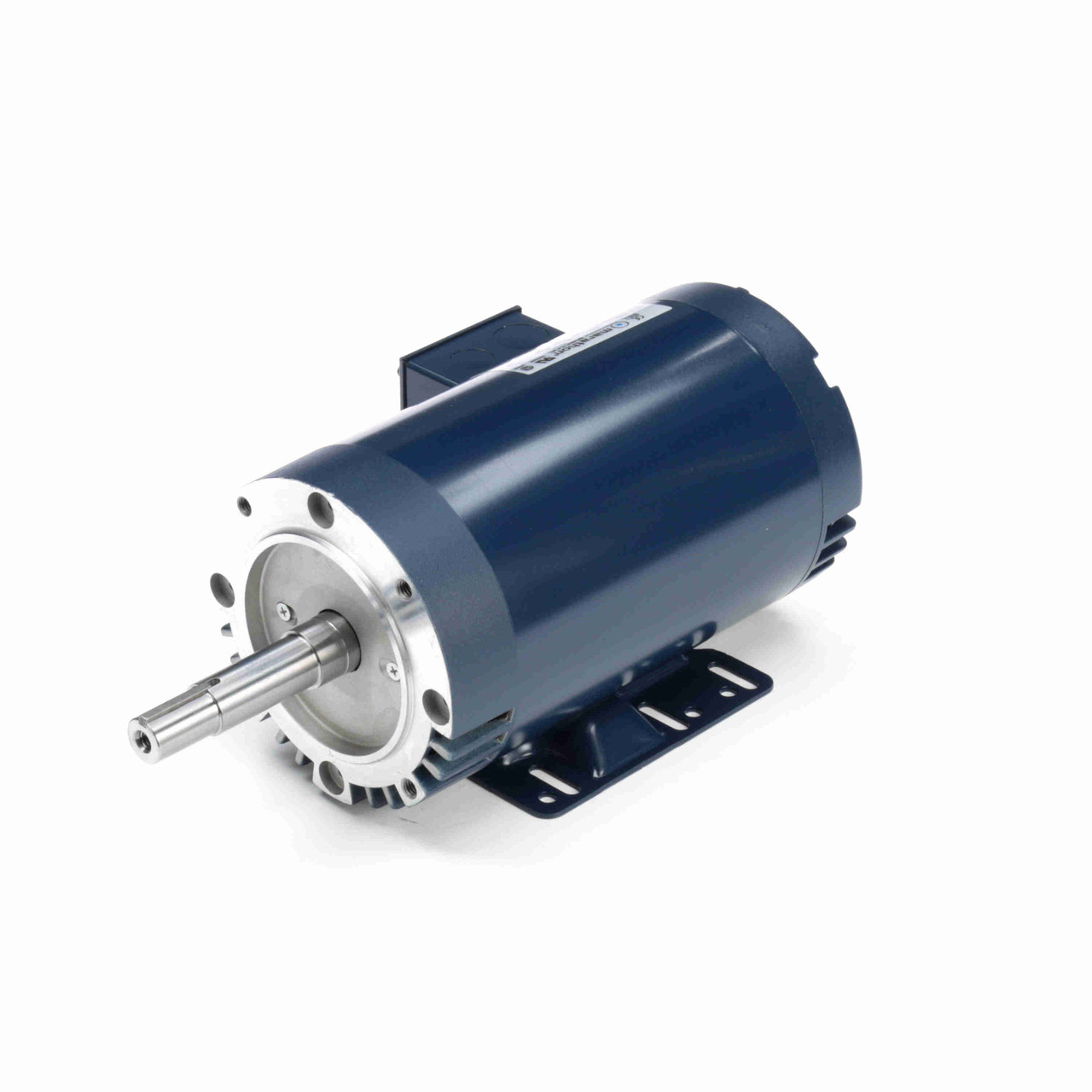

GT0409 Close Coupled Pump JM Three Phase Dripproof Motor 3 HP

Product Description

Features:

• Meets or exceeds all USA mandated efficiencies
• Suitable for use on a VFD. 10:1 variable torque and 2:1 constant torque
• 1.15 service factor on sinewave, 1.0 service factor on IGBT power
• NEMA JM pump shaft dimensions
• JM frame has rigid base, drip cover not included
• Ball bearings, mechanically locked on shaft end
• Class F insulation
• Dual rated motors are nameplated 60/50 hertz, 190/380 volts at next lower horsepower
• F1 Mounting only, cannot reassemble to F2
• UL recognized, CSA certified and CE mark

Details:

• 3 HP
• 3600 RPM
• 230/460 Volts
• 145JM Frame
• Ball Bearings
• Drip Proof
• 40 °C Ambient Temperature
• 7.2/3.6 Full Load Amps

Cross Reference: 145TTDR6013, E105
