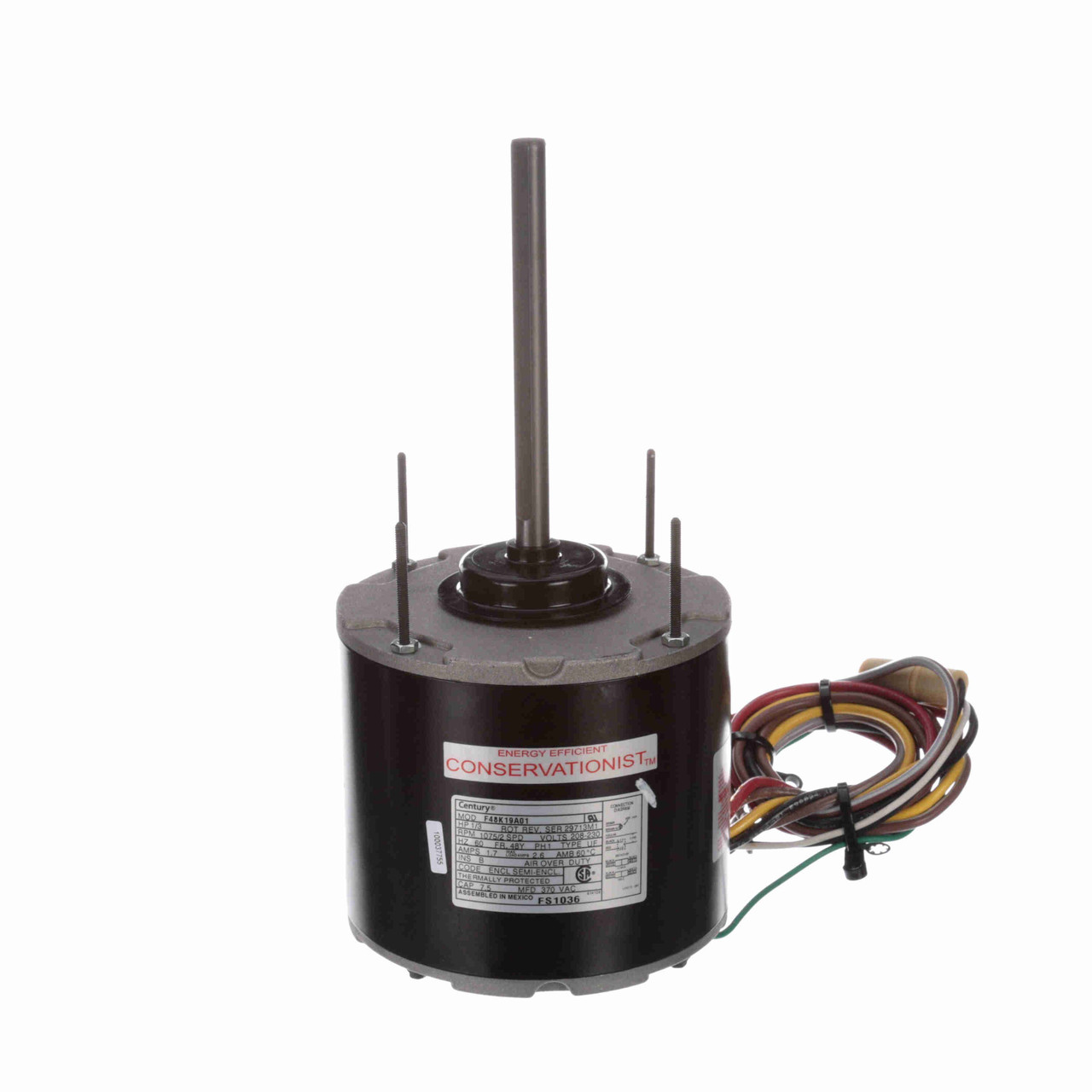

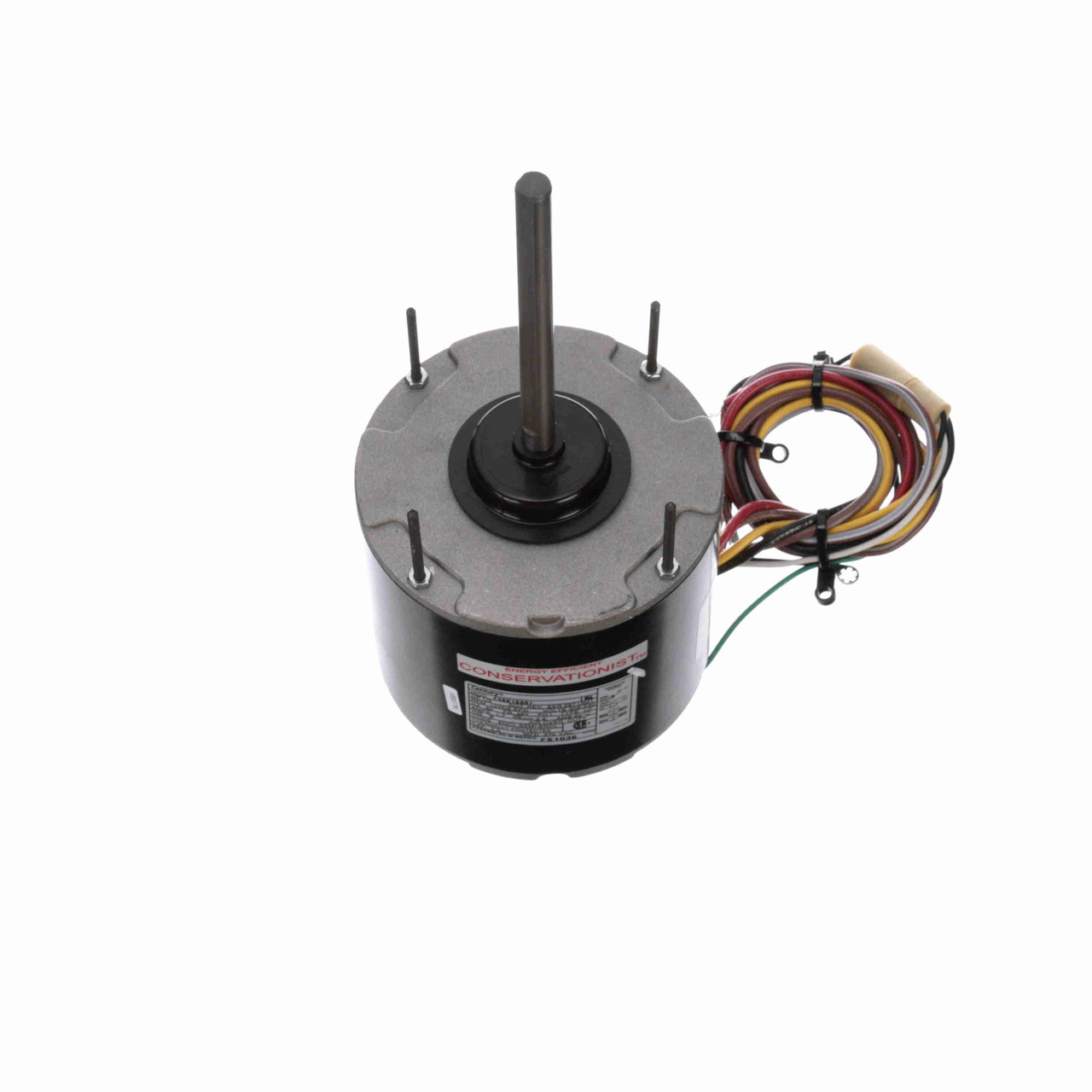

FS1036S Condenser Fan Motor 1/3 HP 1075 RPM 48 Frame

Product Description

FS1036S Condenser Fan Motor

Features: Auto Protector, Class"B" Insulation, Closed Except Lead End, 1/2" Dia. Shaft - Dbl. Flat, Continuous Duty, Air Over, Energy Efficient, Extended Thrubolt, Shaft End, 26" Leads (Minimum), 48 Frame (5-5/8" Dia.), Reversible
Includes Shaft Slinger
60 Degrees Celsius Max Ambient, 60 HZ, Sleeve Bearing, Permanent Split Capacitor, 1.0 Service Factor

• 1/3 HP
• 1075 RPM
• 1 Speed
• 208-230 Volts
• 2.5 Rated Amps
• 3.3 Max Amps
• 5MFD-370V Capacitor***(NOT INCLUDED)
• Reversing Plug
• Resilient Rings Included for Refrigeration Applications
• 1-5/8" Extended thru Bolts

Cross Reference: 323P531 323P933 324P166 F48G53A96 F48K88B38 F48M40A01 F48SL6L13 F48SL6MA15 F48SN6L23 F48SN6L26 HC41ME702 HC41SZ231 HC43SL610 HC43VA232 P257-X088 6880 K8663 D1748 D747 D748 F540 3329 5KCP39HGG960S 9838 RE131 RE165 M-2-576 W48A1102032 X088 X214 X442 63329 512443329 A2-83 C724434P02 736 501
