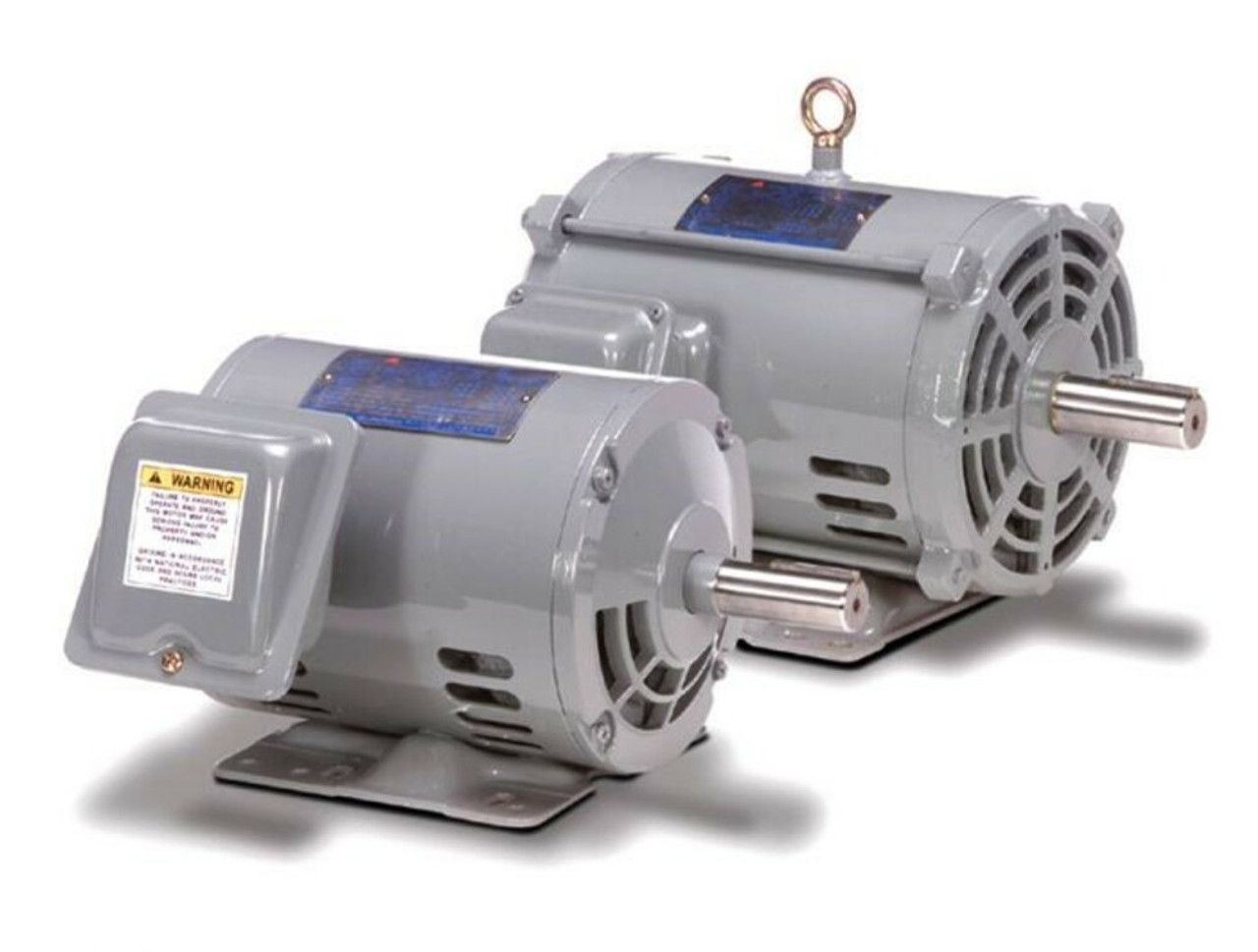

DTP0106 Teco General Purpose Motor, 10 HP, 1200 RPM, 230/460V, 256T FRAME, ODP

Product Description

• 10 hp
• 1200 RPM,
• 25.7/12.9 amps
• 230/460 Volts
• 60hz.
• Three Phase
• NEMA 254/256T Frame,
• Keyed Shaft 1 5/8" Diameter x 4"
• Rolled Steel Frame,
• Enclosure: Open Drip Proof (IP22)
• Service Factor: 1.15,
• Thermal Overload Protection: None
• Rigid Base,
• Reversible,
• Ball Bearings,
• Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque,
• 10:1 Constant Torque
• Motors are U.L. Recognized,
• CSA Approved and CE Marked

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
