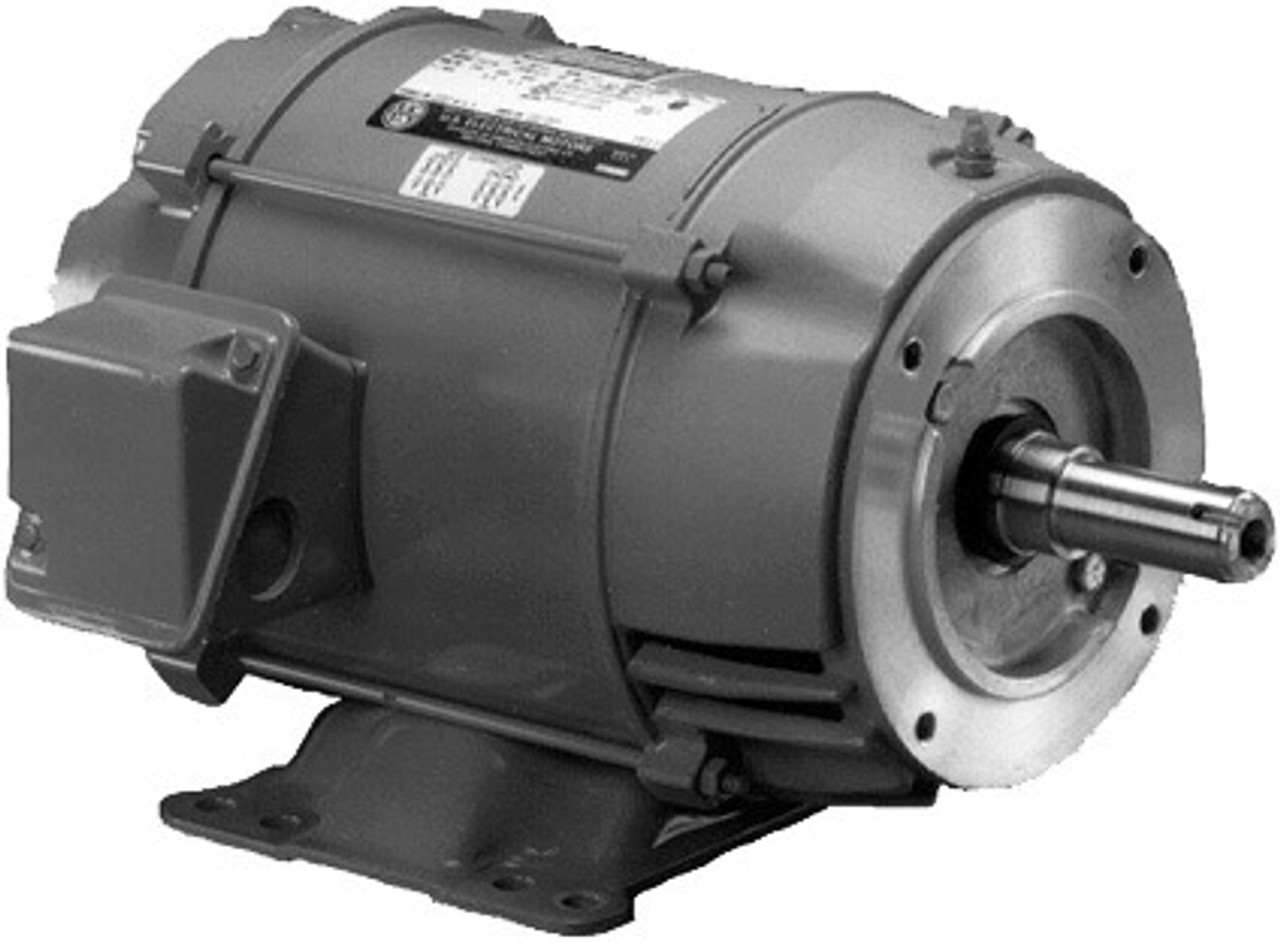

DJ3E2DM Close Coupled Pump 3 Phase ODP Energy Efficient 3 HP

Product Description

APPLICATIONS:
For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used where dirt and moisture are minimal.

FEATURES:
-Class F Insulation, Class B Rise At Service Factor
-Rolled Steel Frame
-Aluminum End Shields 140-250, Cast Iron End Shields 280-320
-Oversized Ball Bearings w/Locked Shaft End Construction
-Premasked Mylar Nameplate (with CE Mark)
-F1 Assembly Position
-Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
-Double Shielded Bearings
-40*C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power
-JM Shaft For Mechanical Seal
-Full 50 & 60 Hertz Operating Data On Nameplate

SPECS:
HP - 3
RPM - 1800
VOLTAGE - 208-230/460
FRAME - 182JM
S.F. - 1.15
C DIMENSION - 17.4
FULL LOAD EFF. - 86.5
FULL LOAD AMPS - 8.6-8.4/4.2

NOTES: 60/50 Hz rated with no derate on HP; 230/460 volt 60 Hz ratings operate on 380V 50 Hz; Full 60 & 50 Hz data on Nameplate; Motors marked 208-230/460 volts may not meet all NEMA (MG-1) performance standards when operated at 208 volts
