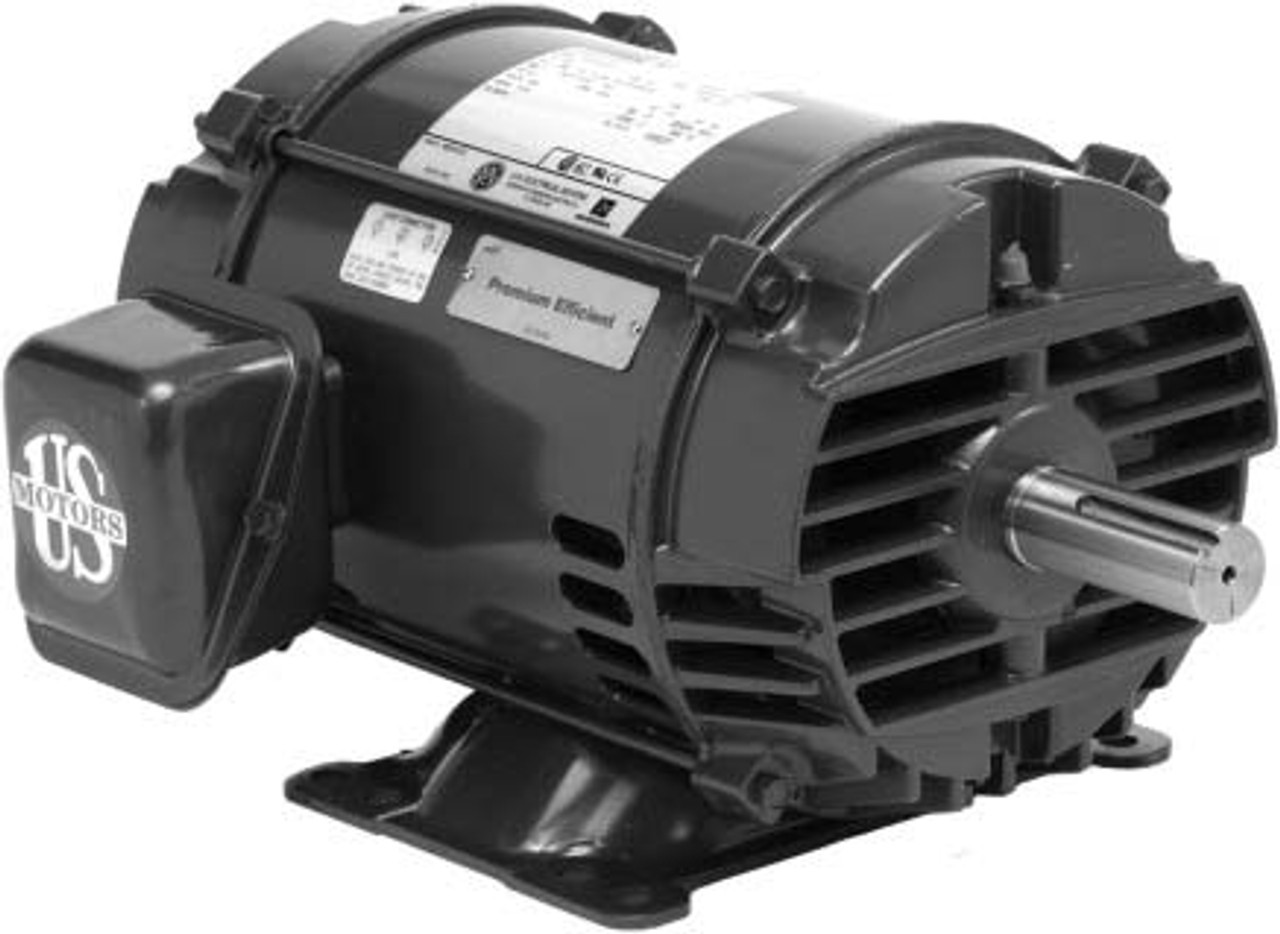

DH40S2GF 3 Phase ODP Dry Hydraulic Elevator Motor 40 HP

Product Description

APPLICATIONS:
Suitable for use on elevators where dry hydraulic motors are required, usually five stories or less.

FEATURES:
-NEMA and CSA Certified
-1800 RPM
-NEMA Design B
-80 Starts Per Hour
-Assembly
-60 Hz
-Class F Insulation
-1.00 Service Factor
-Intermittent Duty Rated For Operation in a 40*C Ambient Temperature
-Ball Bearing Design

SPECS:
HP - 40
RPM - 1800
VOLTAGE - 575
FRAME - 286T
S.F. - 1.00
C DIMENSION - 24.9 Inches
FULL LOAD AMPS - 39

DUE TO THE WEIGHT OF THIS ITEM PLEASE CALL FOR AN ACCURATE SHIPPING QUOTE

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
