D30V2B Definite Purpose 3 PH Open Dripproof 30 HP

Product Description

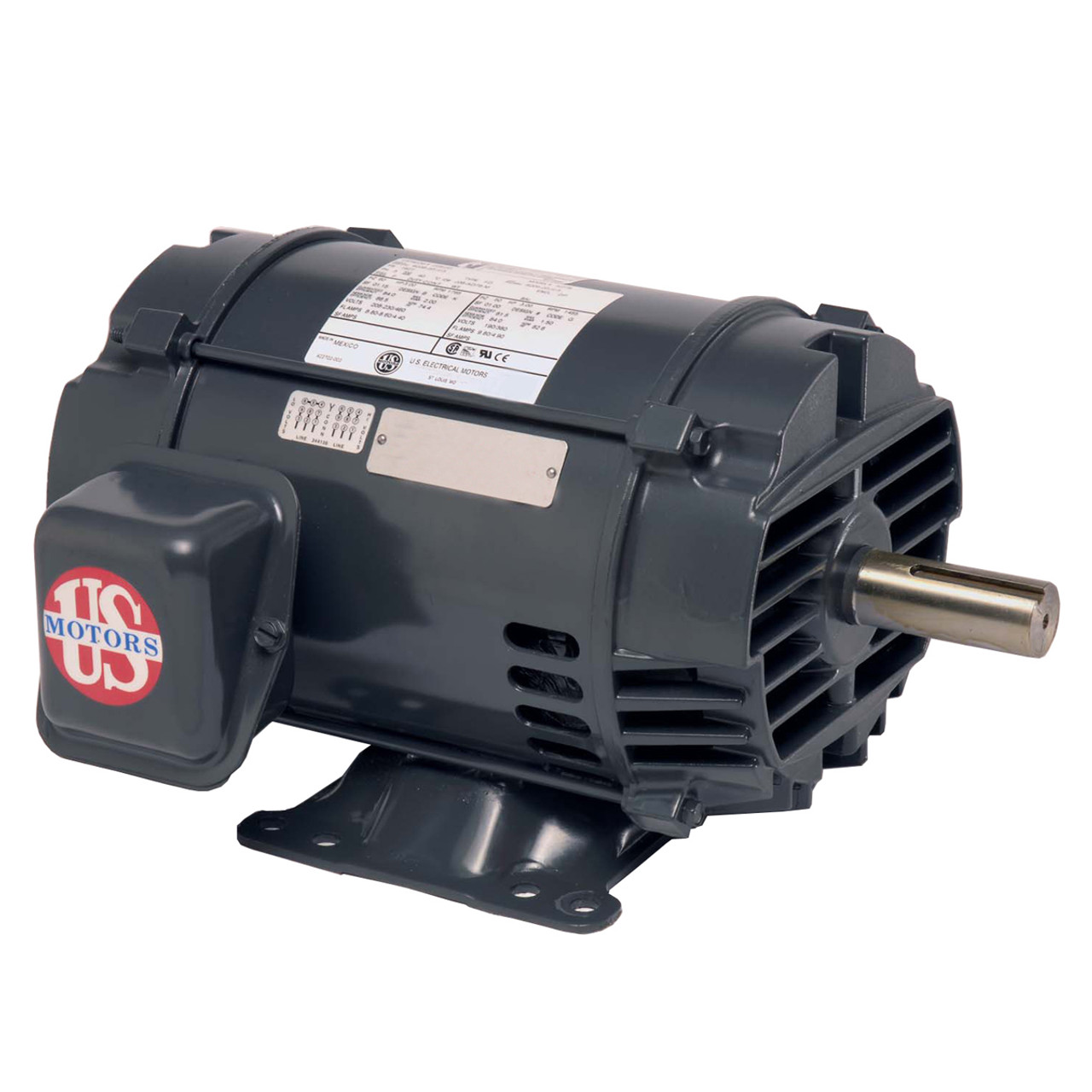

D30V2B Definite Purpose Three Phase, Open Dripproof Inverter Duty 10:1 (6-60 Hz) Speed Range Variable Torque 30 HP

APPLICATIONS
For pumps, fans, blowers or other inverter powered applications.

FEATURES:
-Inverter Grade Insulation System (Meets NEMA MG-1 Part 31)
-Class F Thermostats (One Per Phase)
-Rolled Steel Frame (140-320), Cast Iron Frame (360-440)
-40*C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power
-Constant Horsepower To 90 Hz
-Double Sheilded Bearings 140-400, Open On 440 Frame
-Double Dip & Bake With Extra Bracing
-Premium Efficient Design, Special Balance, F1 Assembly Position
-Class F Insulation, 1.15 S.F. On Sine Wave / 1.0 S.F. On PWM

5:1 (12-60 Hz) Speed Range Constant Torque

HP - 30
RPM (MAX SPEED) - 1800 (2700)
VOLTAGE - 230/460
FRAME - 286T
"C" DIM. (inches) - 24.9
FULL LOAD EFF. - 94.1
FULL LOAD AMPS - 69/34


Due to the weight of this item shipping is for estimating purposes only. For an accurate shipping quote please call.

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
