D2P2AH Nidec | 2 hp 1800 RPM 56H Frame 208-230/460V Open Drip Nidec Electric Motor

Product Description

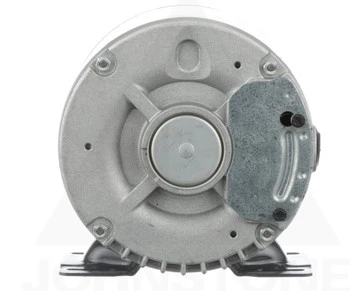

D2P2AH Nidec 2 hp 1800 RPM 56H Frame 208-230/460V Open Drip Electric Motor

This general-purpose, three-phase electric motor from Nidec delivers 2 horsepower at 1800 RPM and is designed for continuous duty applications. It is suitable for replacing or upgrading motors requiring a NEMA 56H frame and premium efficiency performance.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 6.6/3.3 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56H Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and includes Class B insulation for reliable operation at ambient temperatures up to 40°C. It does not include overload protection and wiring diagrams are provided on the motor nameplate for ease of connection. The motor is designed for premium efficiency and continuous duty in a variety of industrial and HVAC applications.

Warranty

1 Year Manufacturer Warranty
