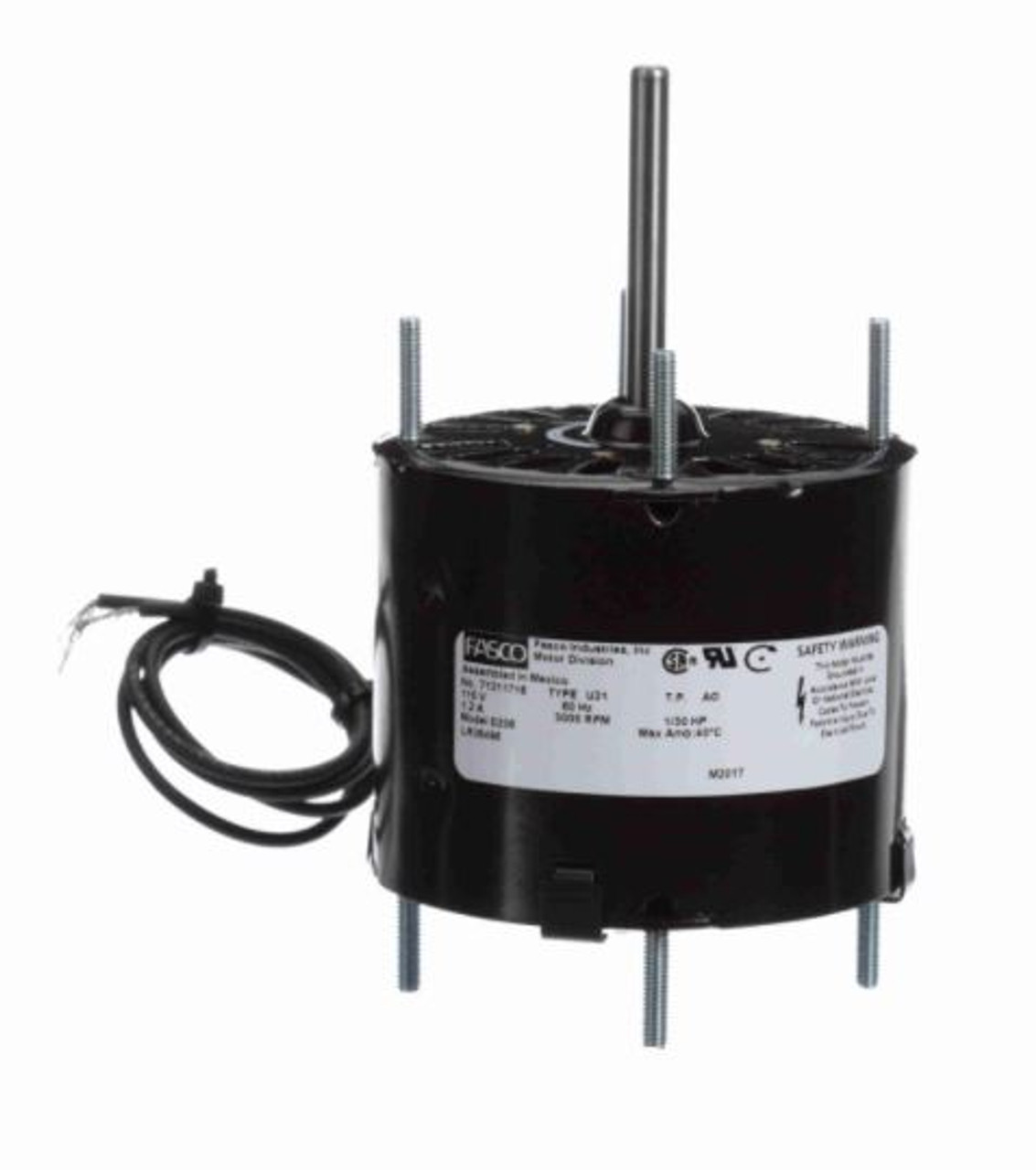

D206 3.3" Diameter General Purpose Motor 1/30 HP

Product Description

D206 3.3" Diameter General Purpose Motor 1/30 HP

Note: low cost alternative while in stock: U36 A.O Smith (limited supply)

• 1/30 HP
• 3000 RPM
• 115 Volts
• 1.2 Amps
• 1 Spd
• Open Vent. Enclosure
• CW Rotation
• Sleeve Bearing
• Shaft 1/4" x 2-1/4"
• "A" Dim. 2-3/4"
• Air Over

NOTES: YOUR SHAFT ON EXISTING MOTOR MAY BE 5/16 INCH WHICH WILL REQUIRE A KIT240 (NOT INCLUDED) ADDED TO THE D206

CROSS REFERENCES: motor only 7021-7871,
*71217871, 7021-6322: Class "A" VS Class "B", Stronger Motor, Cut shaft and studs as required. Need KIT 214, KIT 218, & FK100,
*7021-7014 (NEED 1/4" TO 5/16" SHAFT BUSHING, NEED ENDPLATE 8591-9210, NO CONDUIT BOX ON D206), 7021-7688 (Complete blower not available: add two 0006-3273 bushings, add Kit 214)
