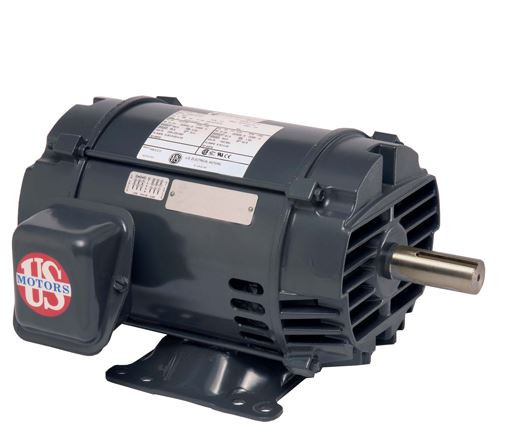

D15P1G 3 PH Open Dripproof NEMA Premium Efficient IE3 - 15 HP

Product Description

D15P1G 3 PH Open Dripproof NEMA Premium Efficient IE3 - 15 HP

Applications:
For use in pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal.

Features:
- Class F insulation, Class B rise at service factor
- 40 degrees Celsius Ambient, NEMA Design Performance on 60 Hz Sine wave power
- 1.15 Service Factor
- Regreasable bearings
- Conversion kits: drip cover kits available

HP - 15
RPM - 3600
Voltage - 575
Frame - 215T
C Dimension - 17.5 In
Full Load Eff- 90.2
Full Load Amps - 14.6

Part May Require lead time, please call for availability

Due to the weight of this item, shipping cost is for estimating purposes only. To get an accurate shipping cost, you must call for a quote.

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
