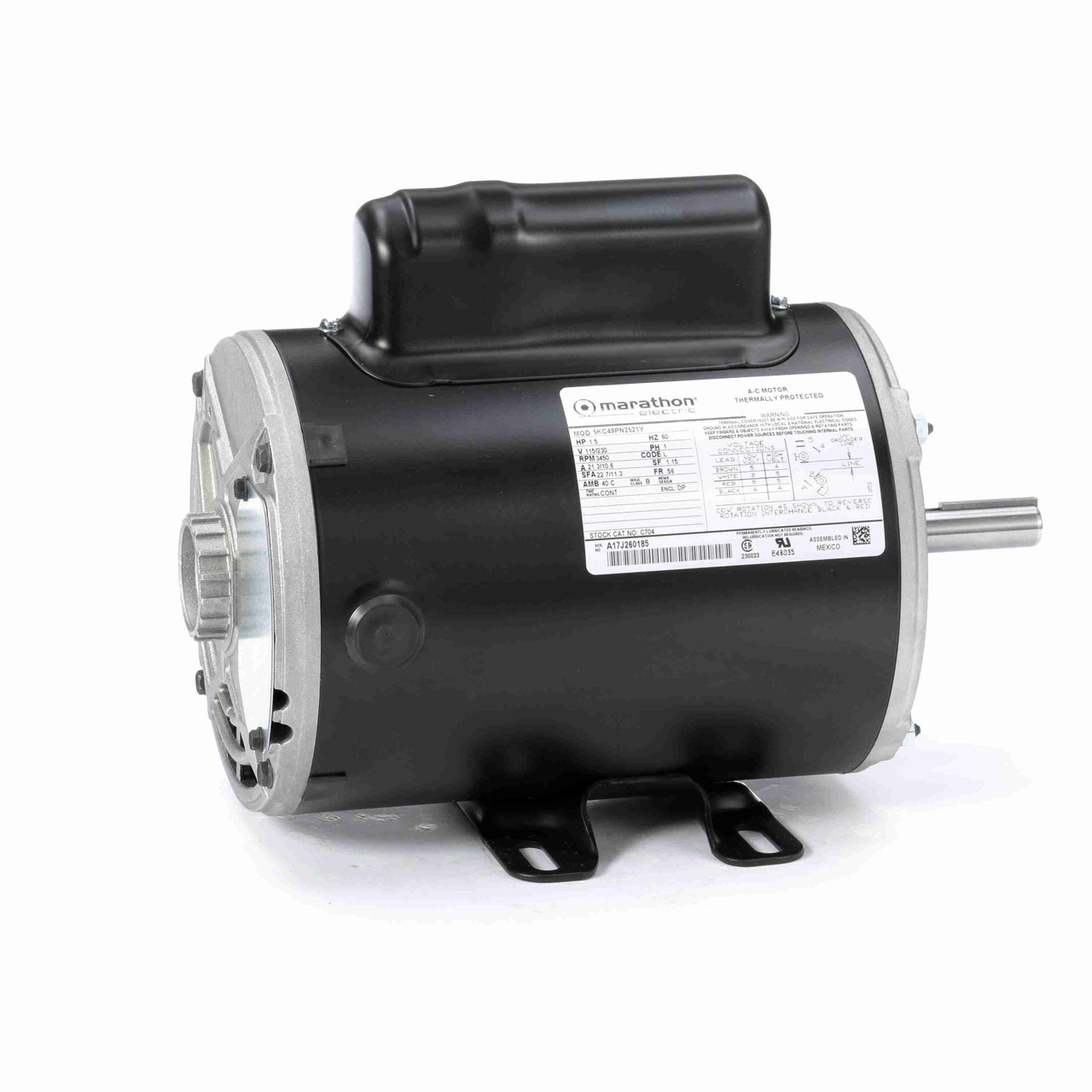

C704 MARATHON AIR COMPRESSOR MOTOR 1.5 HP 3600 RPM 56 FRAME

Product Description

APPLICATIONS: For use in compressors, pumps, pressure washers, and other applications requiring high starting and breakdown torques and used in relatively clean and dry environments.

FEATURES: Capacitor Start Induction Run, Manual Thermal Protection, Continuous Duty, Ball Bearings, Rolled Steel.High starting torque on start-up, to achieve a higher starting load required in air compressor applications.

SPECS:

• 1.5 HP
• 3600 RPM
• 56 FRAME
• SINGLE PHASE
• 115/230 VOLT
• 21.3, 10.6 AMP
• 1.15 S.F.
• SINGLE SPEED
• DP
• CCW/CW
• RIGID
• 0.630" X 1.88" KEYED SHAFT
• 11.91" OVERALL LENGTH

CROSS REFERENCE: 5KC49PN2521Y, C704
