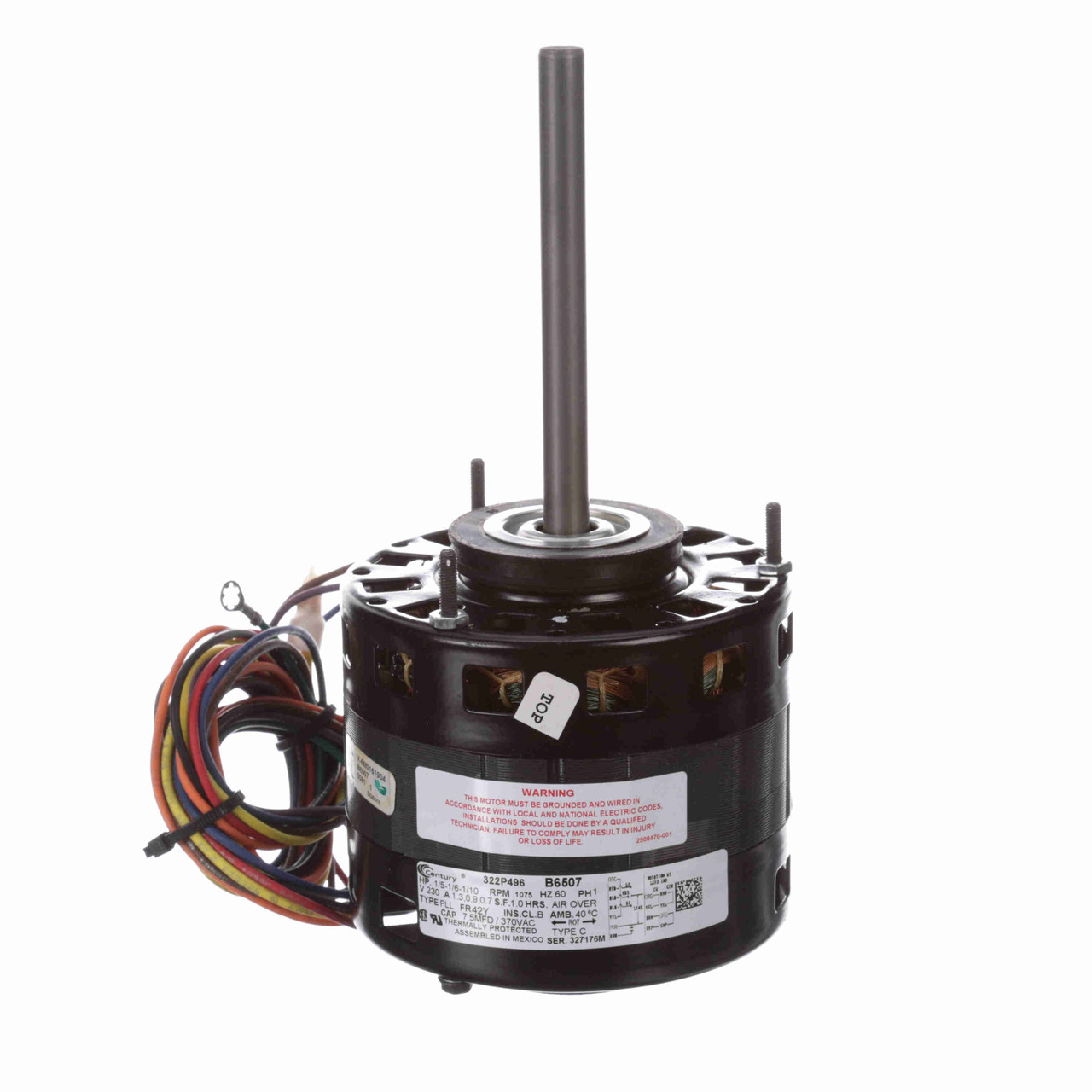

B6507 5 Century Fan and Blower Motor

Product Description

Furnace Blower - Air Handler - Fan Coil - Air Conditioning Motor

• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 36" Leads
• Extended Studs Shaft End, Resilient Ring Mounting
• Phase: 1
• 1/5-1/6-1/10 Hp
• 230 V
• 1075 rpm
• Frame: 42Y
• 60 Hz
• 1.3,0.9,0.7 A
• Speeds: 3
• Permanent Split Capacitor
• Poles: 6
• Reversible
• Shaft Type: Flat
• Overall Length: 9.92 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 5.5 in

Cross Reference: 322P496 322P599 322P629 322P912 10651 10804 A1-24
