474A DISC when stock is gone 5-5/8" Diameter (Open Lead End) - Outdoor Condenser Fan Motor

Product Description

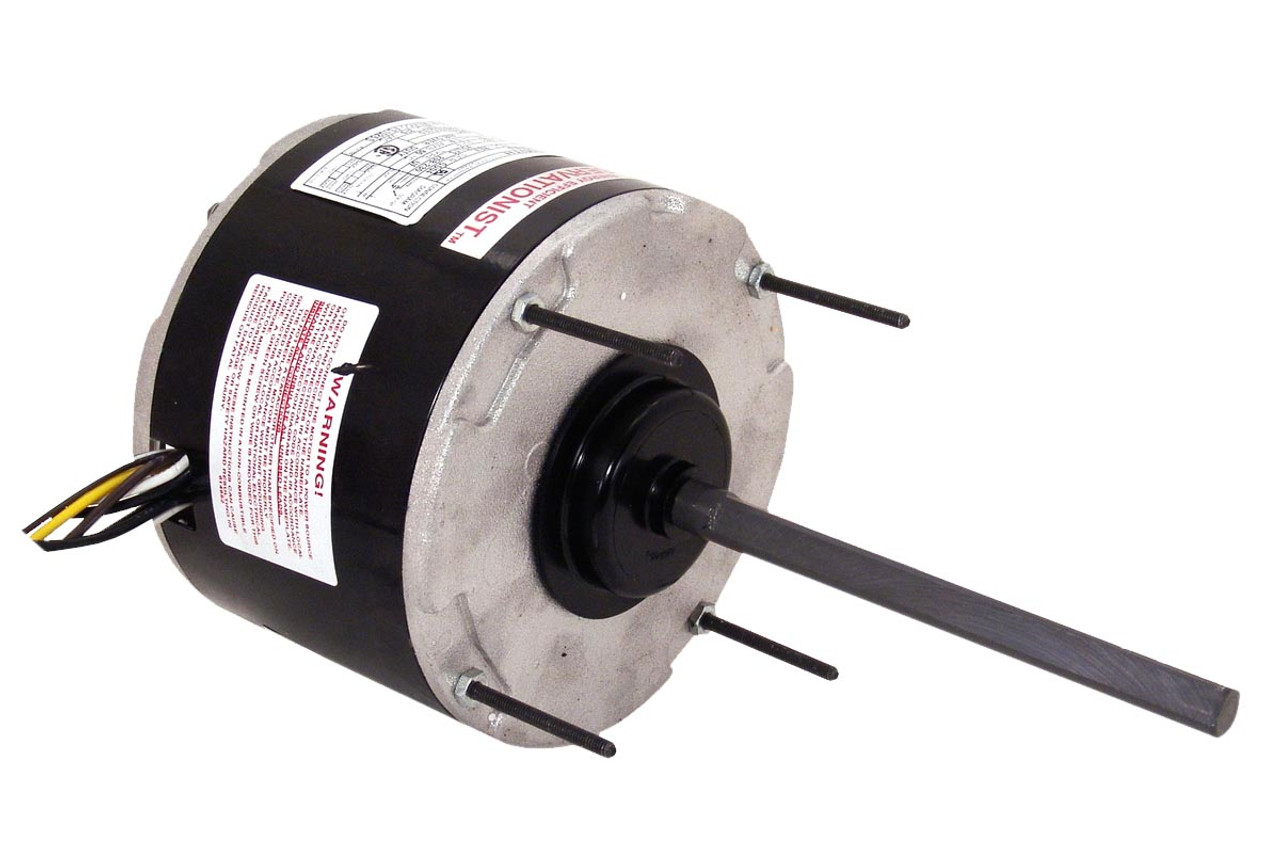

474A 5-5/8" Diameter (Open Lead End) - Outdoor Condenser Fan Motor

Features: Energy Efficient, Permanent Split Capacitor, 26" to 48" Leads, 60 Hz, All Angle Mount, Auto Protector, Reversible, Extended Thru Bolts, Dripproof - Vertical Shaft Up/Horizontal

• 1/4 HP

• 825 RPM
• 208-230 Volts
• 1 Speed
• 1.5 Rated Amps
• Class B Insulation
• 60°C Ambient
• Sleeve Bearing
• 7.5MFD-370V Capacitor (Not Included)
• Reversing Plug
• No Hub on Lead End Frame
• 1-7/8" Shaft End, 1/2" Lead End Extended Thru Bolts

Cross Reference: D792, 3135, K8666, X097, 474, F48Z76A01, Carrier/BDP HC39G230B, 8666, K4858, K55HXCDR1577, K55HXMFG6350, K55HXMWF6643, K55HXSBH8322, KA55HXKHW8371, UH73A4B2A7165, 3040, 577439KG5752, 5KCP33MG637, 5KCP39EG3147, 5KCP39EGD904, 5KCP39GG1564, 5KCP39GG3034, 5KCP39GG8244, 5KCP39GGG965, 5KCP39HGD029, 5KCP39JGD868, 5KCP39KGC215, 5KCP39KGE443, 5KCP39KGF141, 5KCP39MG1708, 5KCP39MG3277, 5KCP39MG3912, 5KCP39MG8243, 5KCP39MG9199, 5KCP39PG1210, 5KCP39PG3380, 5KCP39PG3738, 5KCP39PGB742, 5KCP39PGC369, 5KCP39PGC486, S88-356, W48A80182, MOT 1057, MOT 2062, MOT 2363, MOT 6003, MOT 682, HE4J004, HE4J007, HE4J7004, HE4K003
