1221P Direct Drive Double Shaft 1/4HP Fan and Blower Motor

Product Description

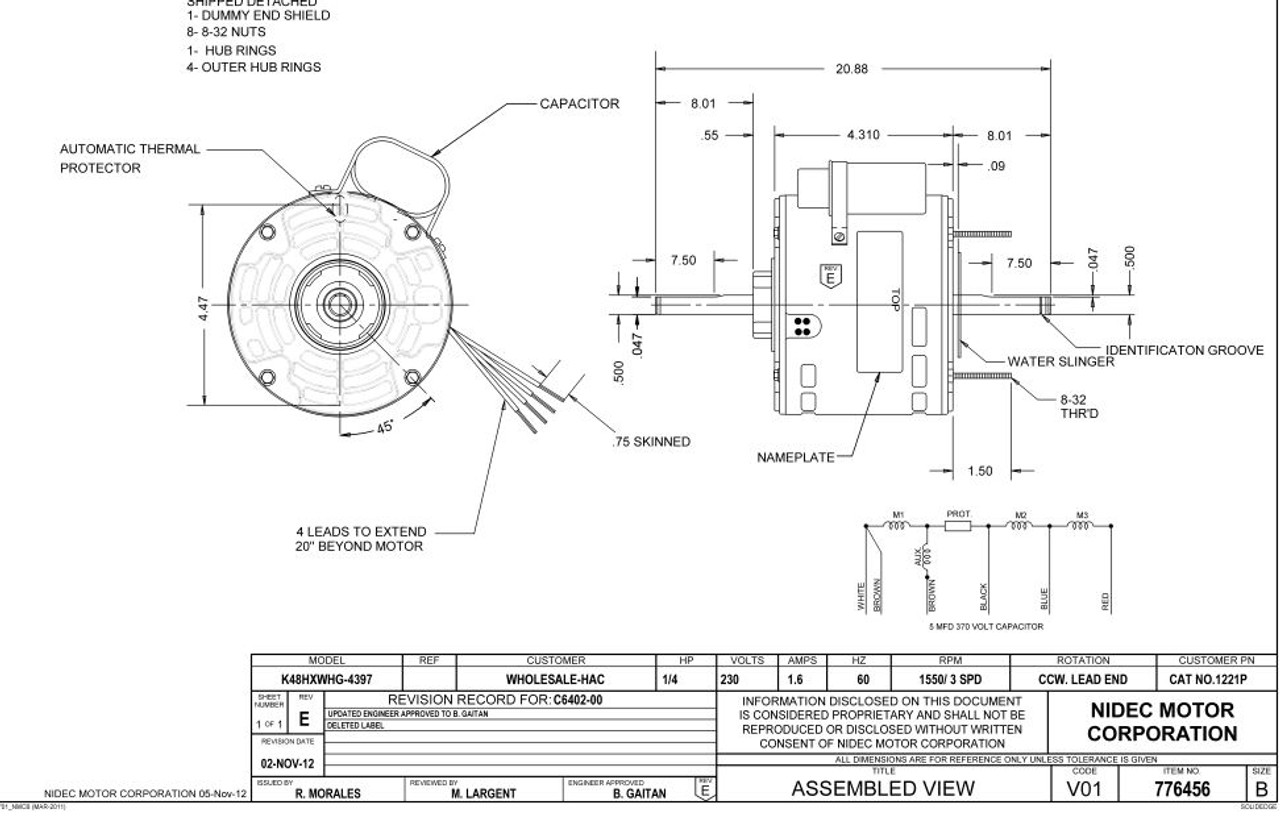

THIS IS A GENERIC PICTURE - THERE IS NO RESILIENT BASE

APPLICATIONS:
Designed to meet manufacturer's requirements for direct drive fans & blowers.

FEATURES:
-5" Diameter, Resilient Base, Double Shaft
-Sleeve Bearings Have All Angle Thrust System
-Continuous Duty, Air Over
-24" Line Leads Unless Otherwise Noted
-Automatic Reset Thermal Overload Protector
-Connection Information Furnished in the Nameplate Data
-Shaded Pole Design Except Where Noted

SPECS:
HP - 1/4
RPM - 1550/3
VOLTS - 230
BEARINGS - SLV
ROTATION - CCWLE

AMPS - 3.4

FRAME - 42Y

SHAFT N - 8
SHAFT XN - 8
SHELL XI - 4.3
TOTAL C - 20.9

NOTES: 20" Leads, Fig. B Type, Includes Mounting Kit (1 HUB RING); Non-Reversible
