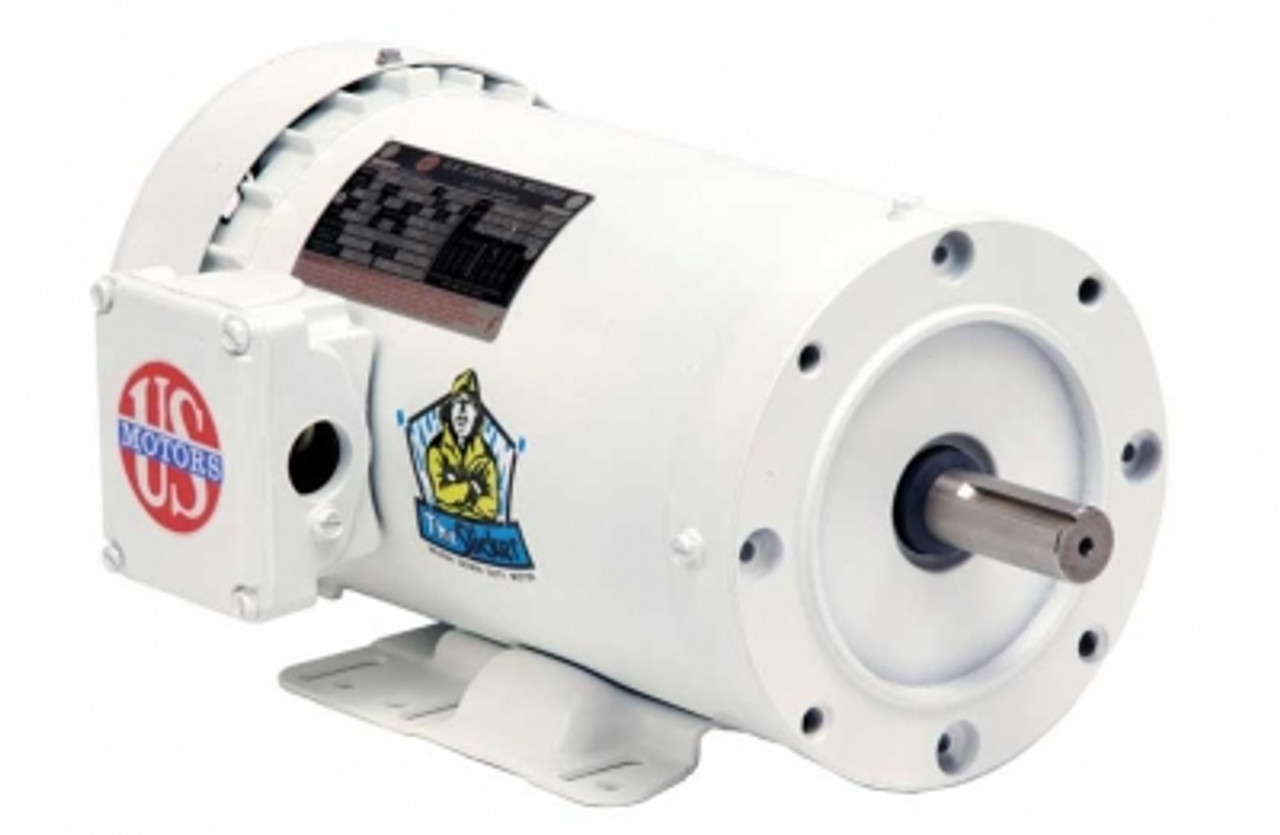

WD1C1JC US-NIDEC SPECIAL APPLICATION WASHDOWN MOTOR 1 HP 3450 RPM 56C FRAME

Product Description

APPLICATIONS:  Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.

FEATURES:  Capacitor Start, USDA Approved Non-Toxic White Epoxy Paint, V-Ring Rotating Lip Seal On Shaft End, F1 Assembly Position, Double Contact Sealed Ball Bearings, Internal Corrosion Protection On Rotor, Stator, Winding & Frame, Stationary Grease Seal On Both Ends, 303 Stainless Steel Shaft, Moisture-Resistant Gasketed Conduit Box With NPT Lead Holes, Multiple Stainless Steel T-type Drains.

• 1 HP
• 3450 RPM
• 56C FRAME
• SINGLE PHASE
• 115/208-230 VOLT
• 13.6/6.9-6.8 AMP
• 1.15 S.F.
• SINGLE SPEED
• TEFC
• RIGID
• REVERSIBLE
• C-FACE
• .625" X 2.060" KEYED SHAFT

CROSS REFERENCE:  C063JJY5410015B C63JJY-5410
