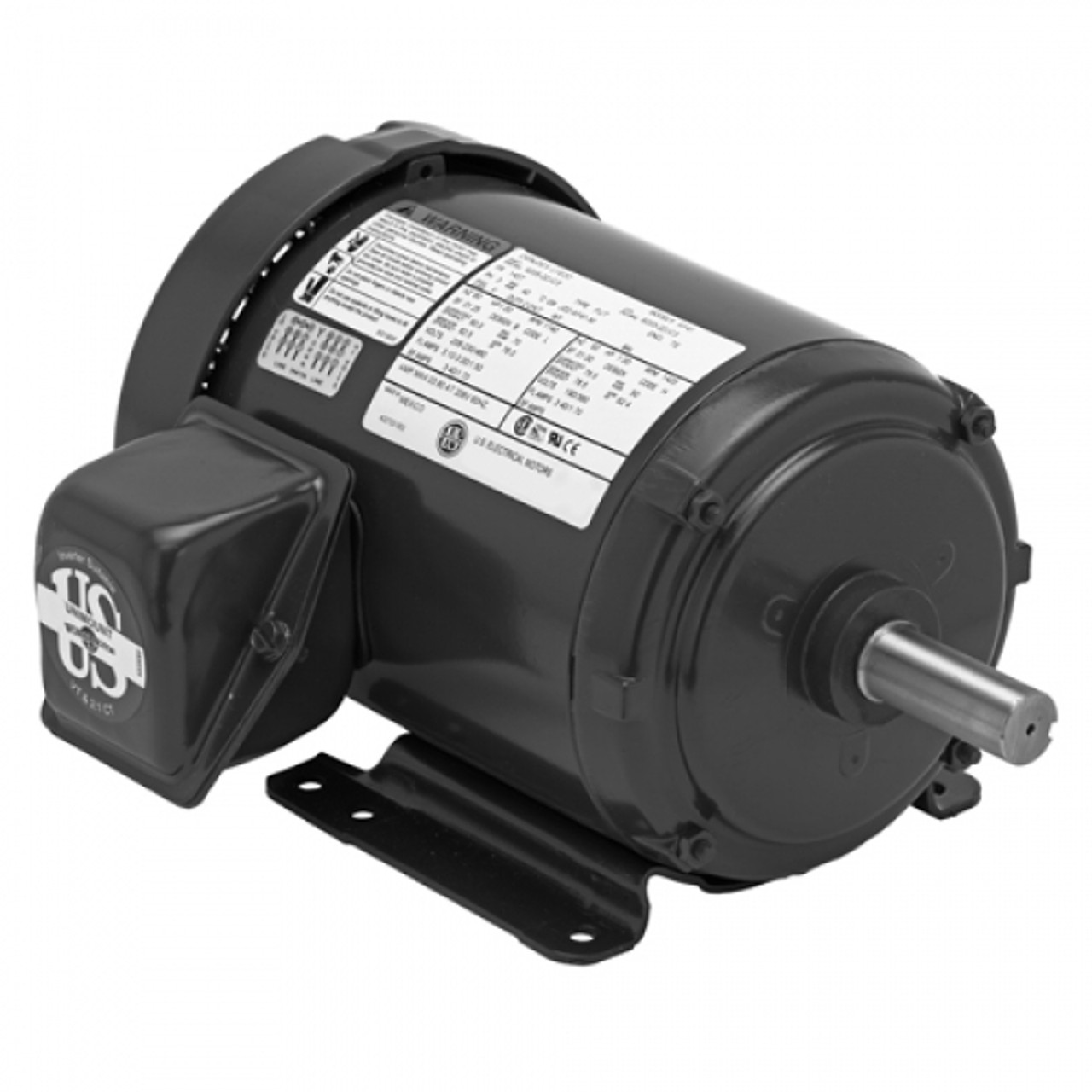

T12S3A Nidec General Purpose Three Phase TEFC 1/2 HP

Product Description

Applications: For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

Features: Class F Insulation, Class B Rise at Full Load on 60 Hz Sine Wave Power, Rolled Steel Frame, Aluminum End Shields with Steel Bearing Inserts, Over sized Diagonally Split Conduit Box, 40 Degrees Celsius Ambient, NEMA Design B Performance, Conversion Kits: C & D Flanges, Drip Covers

• 1/2 HP
• 1200 RPM
• 208-230/460 Volts
• 56 Frame
• 11.9" "C" Dim
• 2.2-2.3/1.1 Full Load Amps
• 1.15 Service Factor

Notes: Does not accept brake kit
