Product Description

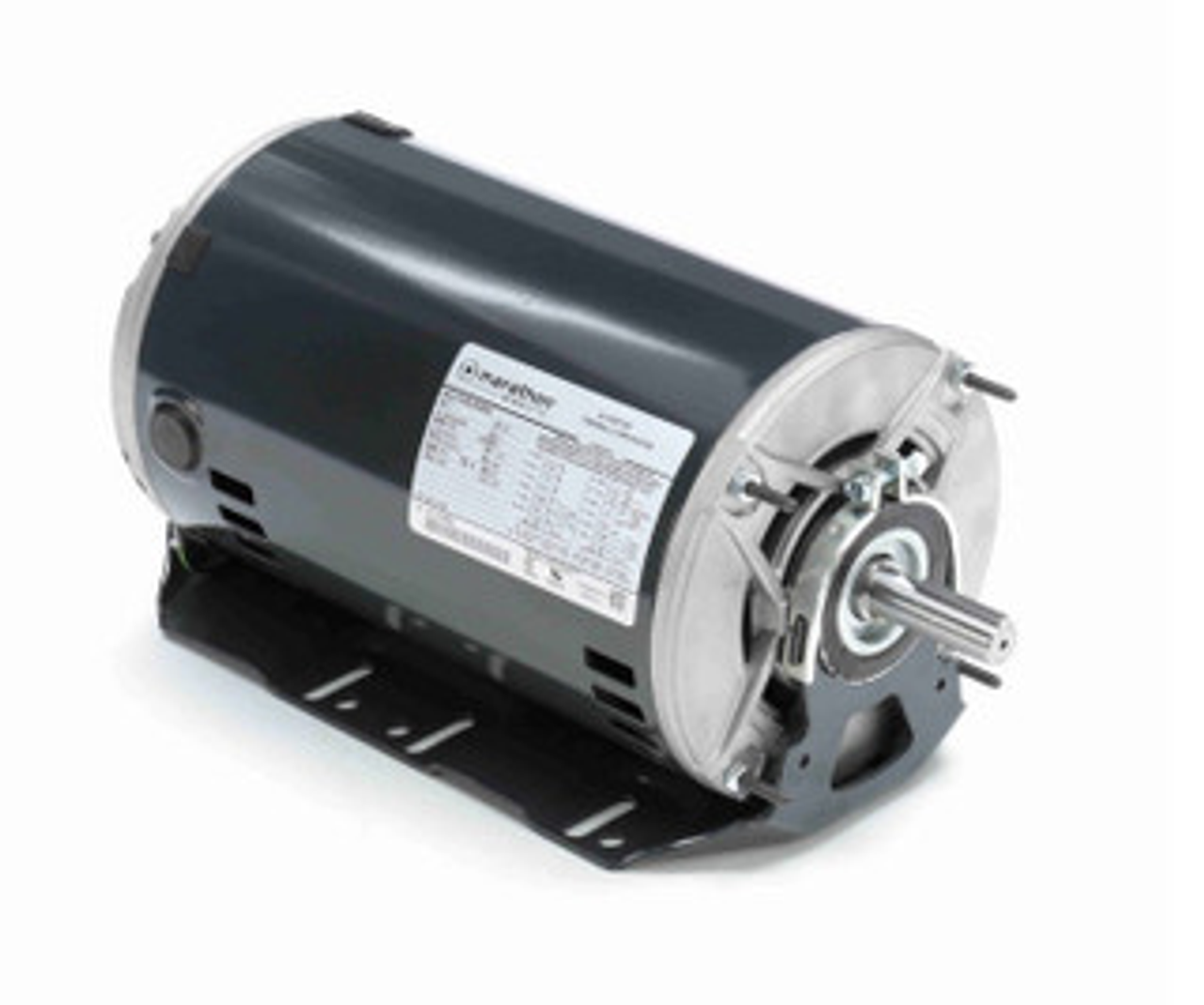

MK1418 Three Phase Fan and Blower
**Please Note Product May ship under original Marathon number** (see cross references)
| Model Number: 56T17D5333 Catalog Number: G128 |
| Product Type: SQ CAGE IND RUN |
| Enclosure: DP |
| Frame: 56 Multiplier Symbol: F1 |
| Dimensional Drawing A-100128-806 PDF |
| Connection Diagram A-EE7335 PDF |
| HP: 2/1.5 Frequency (HZ): 60 |
| Speed (RPM): 1800/1500 Mounting: RESILIENT BASE |
| Phase: 3 Motor Wt: |
| Volts: 208-230/460 Insulation Class: B |
| F.L. Amps: 6.2-6.2/3.1 Duty: CONTINUOUS |
| Service Factor: 1.15 Max. Ambient: 40 |
| Bearing: BALL/BALL F.L. Eff.: 81.5 |
| DE Bearing: Thermal Protection: AUTO |
| OPE Bearing: KVA Code: K |
| Hazardous Location: NONE |
Cross Reference: 5K49UN4066X Marathon G128
