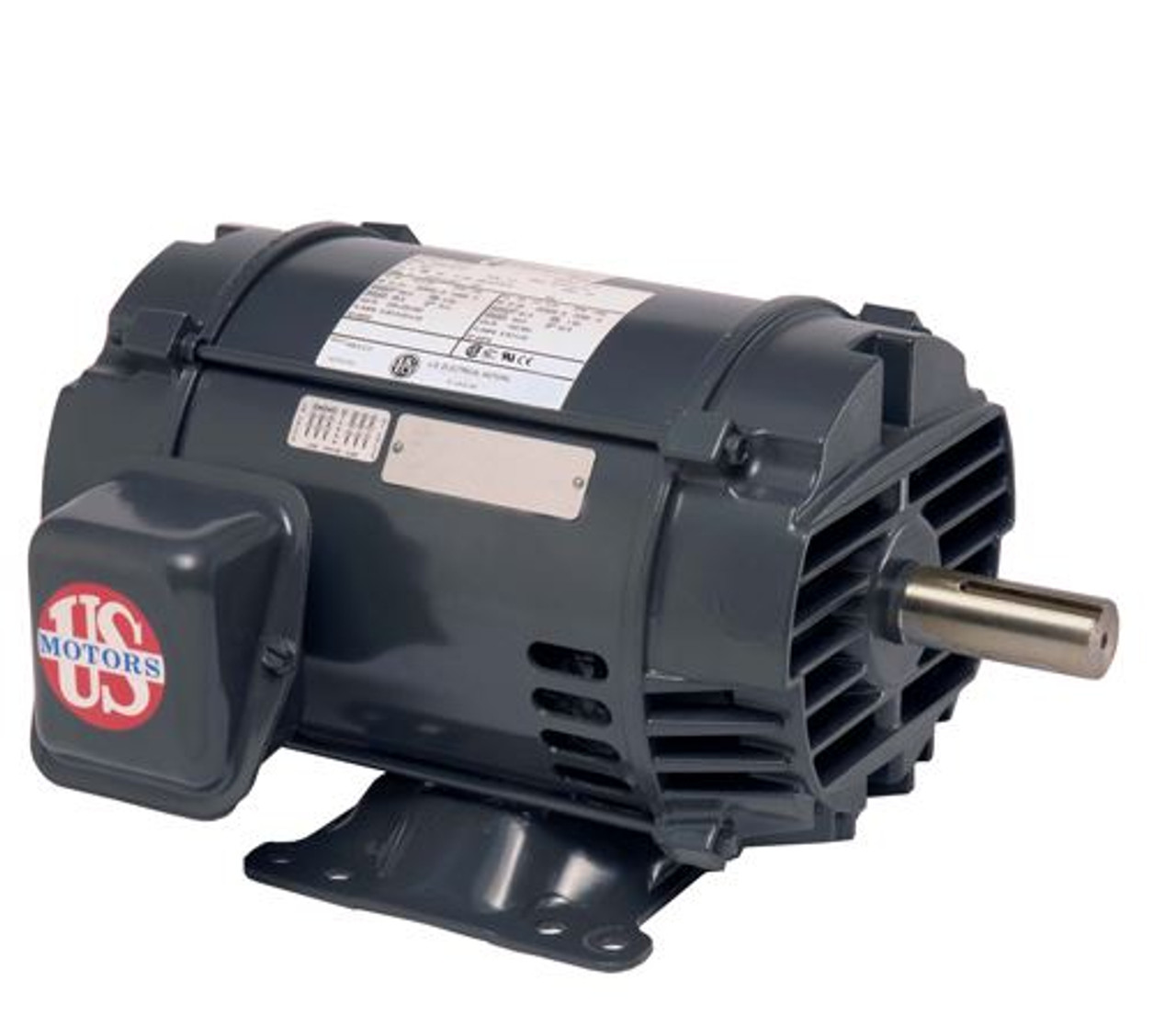

D30P2D US-Nidec General Purpose Motor 30 HP 1800 RPM 286T Frame

Product Description

US-NIDEC D30P2D GENERAL PURPOSE MOTOR

APPLICATIONS:  For use in pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal.

FEATURES:  Premium Efficient, Double Shielded Ball Bearings, Rolled steel.

• 30 HP
• 1800 RPM
• 286T FRAME
• 3 PHASE
• 208-230/460 VOLT
• 77-6/34 AMP
• 1.15 S.F.
• SINGLE SPEED
• ODP
• REVERSIBLE
• RIGID
• 1.875" X 4.38" KEYED SHAFT
• 24.88" C-DIMENSION

CROSS REFERENCE:  286TTDR16037, E1009, ME1009, E516 E516M2 UE516M2

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
