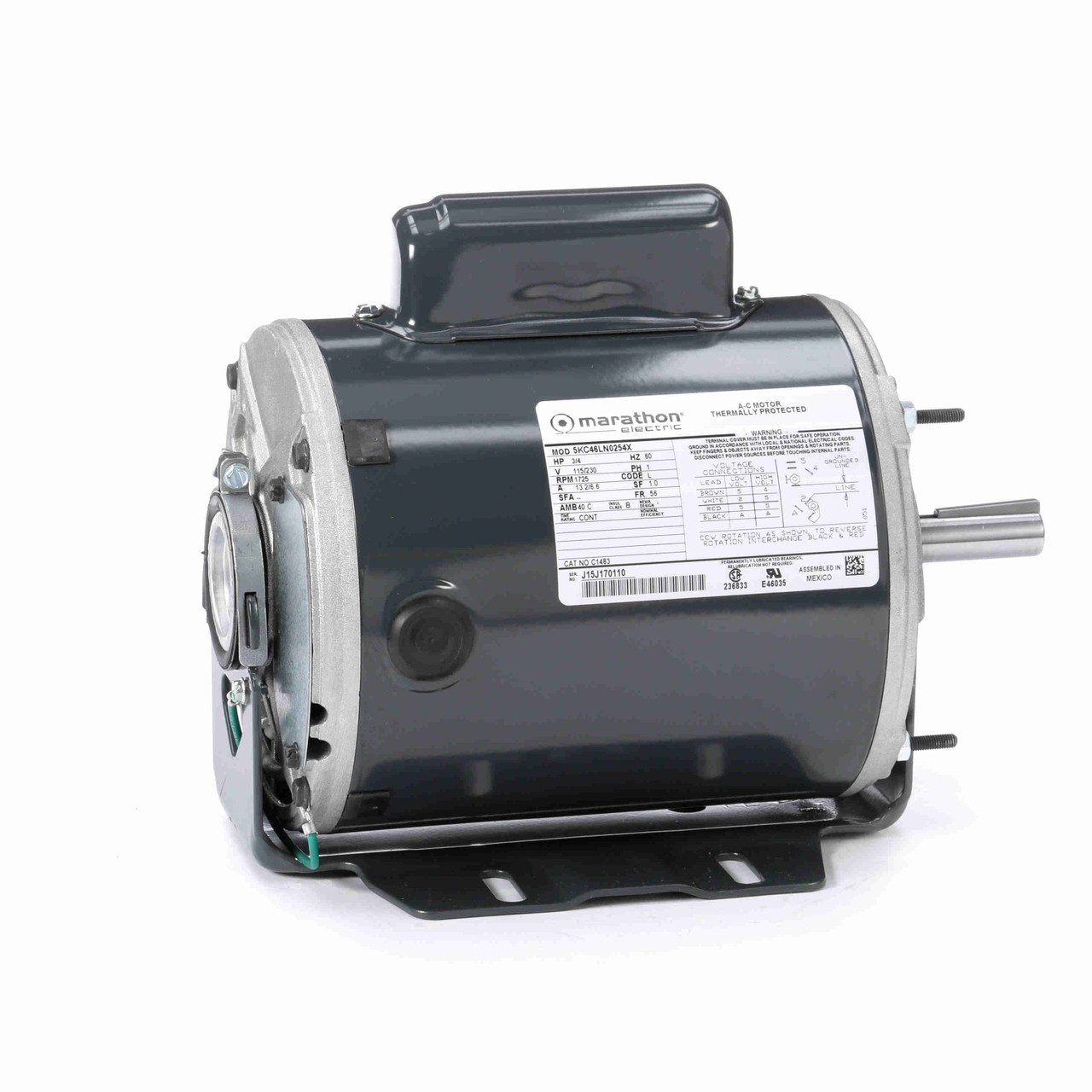

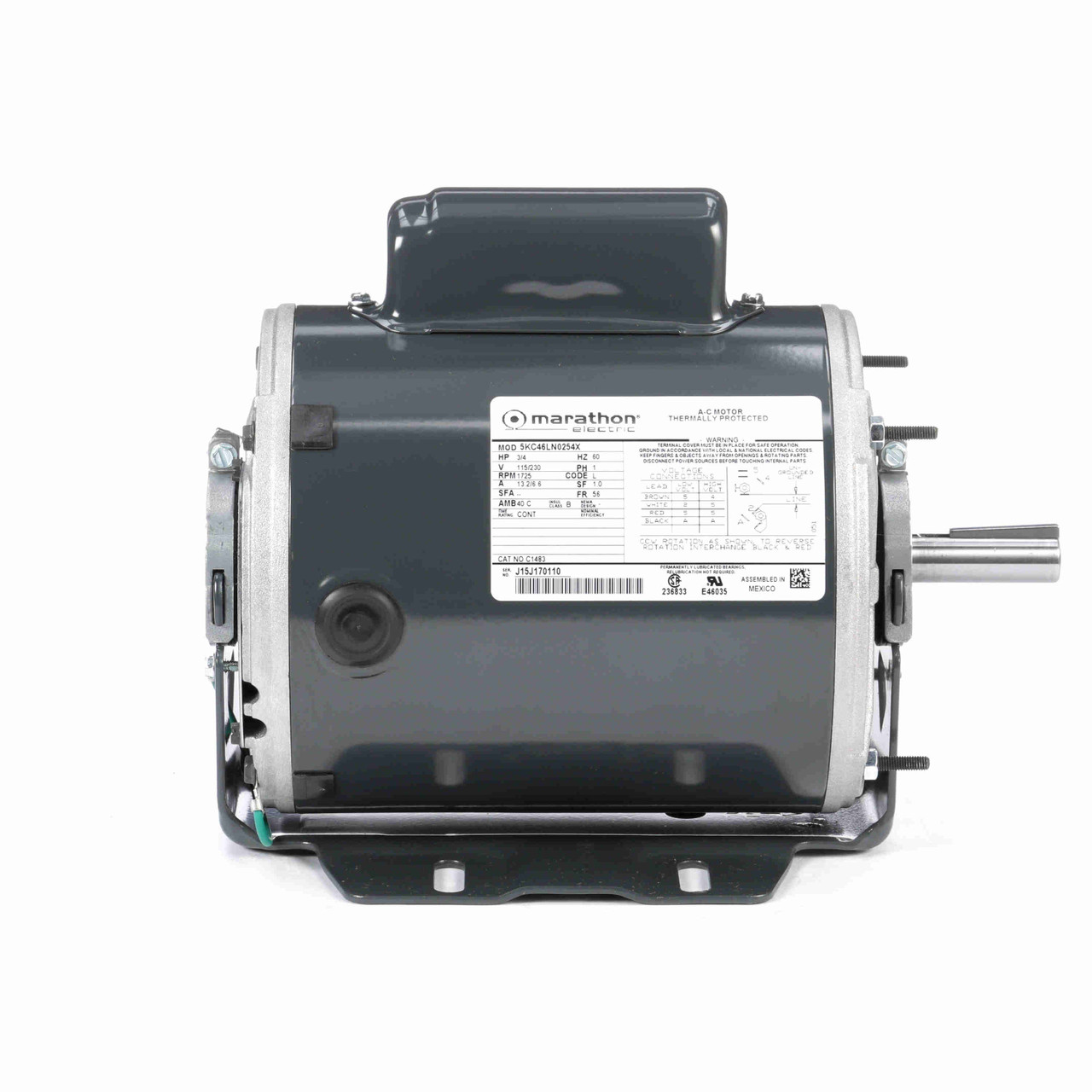

C1483 Marathon General Purpose Motor 3/4 HP 1725 RPM 56 Frame

Product Description

Marathon C1483 General Purpose Motor

Applications: Special purpose use on belt drive fans, blowers, coolers, tools, and other machinery requiring low to moderate starting torque and where power requirements do not exceed nameplate ratings.

Features:  Capacitor Start-Induction Run, Double Sealed Ball Barings, Continuous Duty, Automatic Thermal Protection.

• 3/4 HP
• 1725 RPM
• 56 FRAME
• SINGLE PHASE
• 115/230 VOLT
• 13.2,6.6 AMP
• 1 S.F.
• SINGLE SPEED
• DP
• RESILIENT BASE
• CW/CCW
• 0.630" X 1.88" KEYED SHAFT
• 10.78" OVERALL LENGTH

Cross Reference:  5KC46LN0254X, RS1070AV1, C1483
