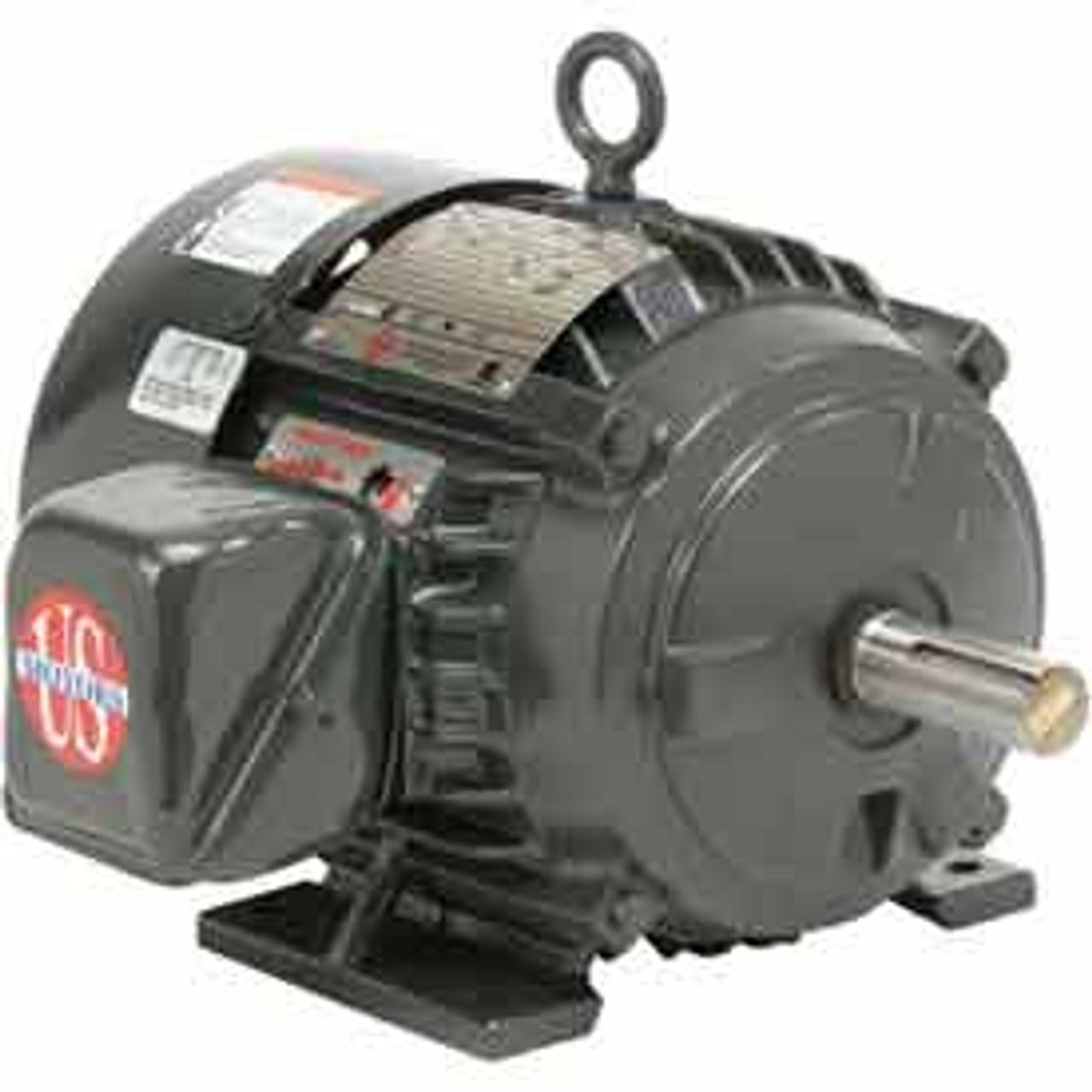

A7P2C Automotive Duty U Framed Footed Premium Efficient 7-1/2HP

Product Description

A7P2C Automotive Duty U Framed Footed Premium Efficient 7-1/2 HP

Applications:
For automotive and process industries where "U" Frame size are specified. Built to meet General Motors GM7EH, Ford EM-1 and Chrysler NPEM-105 specifications.

Features:
- Class F Insulation, 60 Degrees Celsius at Full Load
- Cast Iron Frame & End Brackets
- Corrosion Resistant Mill & Chemical Duty Paint
- Stainless Steel Nameplate & Zinc Plated Hardware
- Shaft Slinger on Pulley End for IP54 Protection
- 1.15 SF @ 40 Degrees Celsius; 1.0 SF @ 65 Degrees Ambient, NEMA Design B on 60 HZ Sine Wave Power
- Regreasable Double Shielded Bearings w/ "Straight Through" Lube System
- 85 dBA Max Sound Power Level
- Precision Balance
- Oversized Diagonally Split Conduit Box w/ Lead Positioning Gasket
- Steel Fan Cover
- Field Convertible to F2 Mounting
- Conversion kits available

HP - 7-1/2
RPM - 1800
Voltage - 460
Frame - 254U
SF - 1.15
C Dimensions - 25.3 in.
Full Load Eff - 93.0
Full Load Amps - 8.9


Shipping is for estimation purposes only, please call for a shipping quote
Not a normal stock item - please call for availability

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
