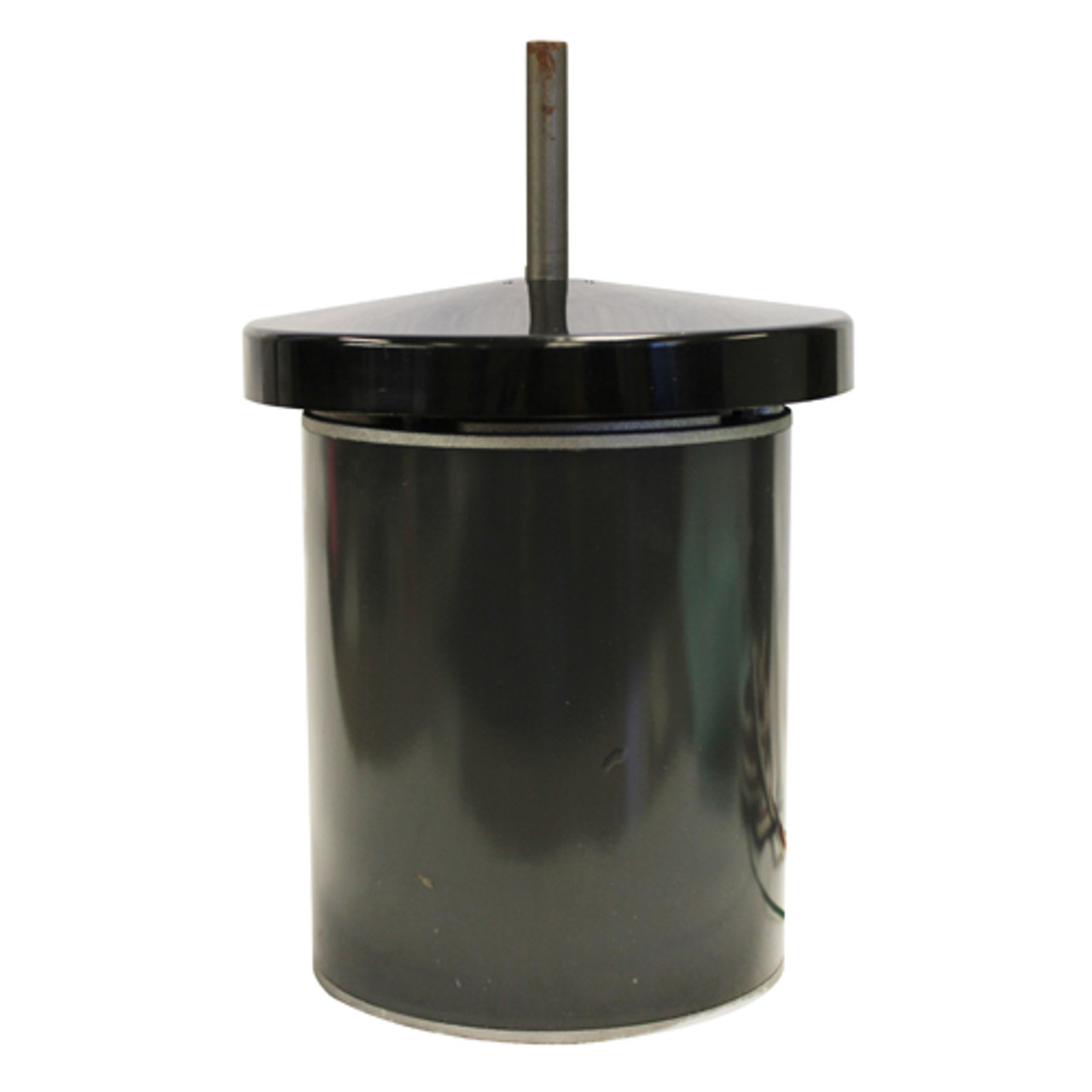

8233 US-NIDEC COMMERCIAL CONDENSER FAN MOTOR 3/4 HP 1100 RPM 48Y FRAME

Product Description

US-NIDEC 8233 COMMERCIAL CONDENSER FAN MOTOR

APPLICATIONS:  For use on condenser cooling fans in commercial air conditioning applications.

FEATURES:  PSC, 5.6" Diameter Frame, automatic Thermal Overload Protector, Continuous Over Air Duty, Double Sealed Ball Bearings, Band Mount with Drip Cover.

• 3/4 HP
• 1075 RPM
• 48Y FRAME
• 460 VOLT
• 2.3 AMP
• 1 S.F.
• SINGLE SPEED
• ODP
• CCWLE / REVERSIBLE
• ALL ANGLE MOUNTING
• 1/2" X 4" KEYED SHAFT
• 10.81" C-DIMENSION
• REQUIRES 15 MFD/370 VAC CAPACITOR - NOT INCLUDED

NOTES: Ventilated (In wet conditions, position vent holes at the bottom of motor; use rain shield if used shaft up.)  No Outlet Box.  Includes Leads.  Capacitor Not Included.

CROSS REFERENCES:  K055NPB1104031B K55HXNPB-1104 OEM for Aaron

 F48F37A01 F48F37A27 F48N58A01 F48SP6V9 1464 8233 D968 OAN1076
